LED Mesh Screen

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display.

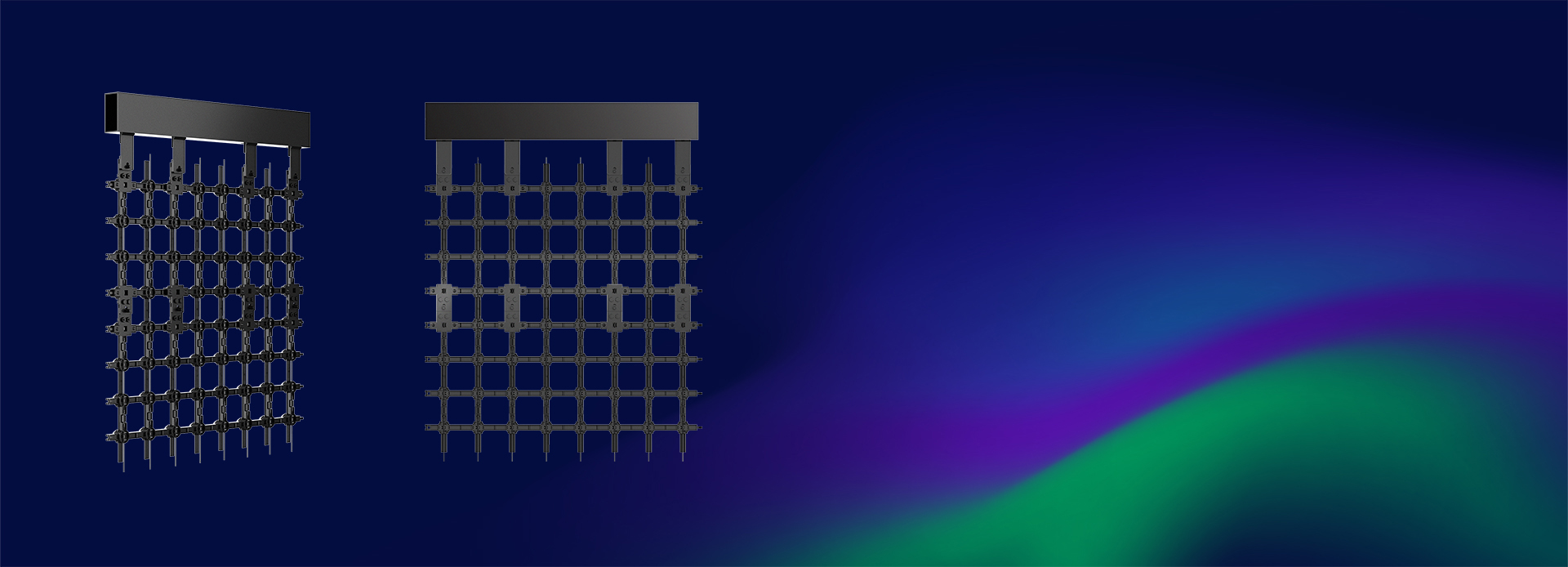

  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs).
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged.
Copied

LED MESH SCREEN

High resolution

High resolution

1024dot/m2

Adaptive

Adaptive

Operating temperature: -40℃~+60℃

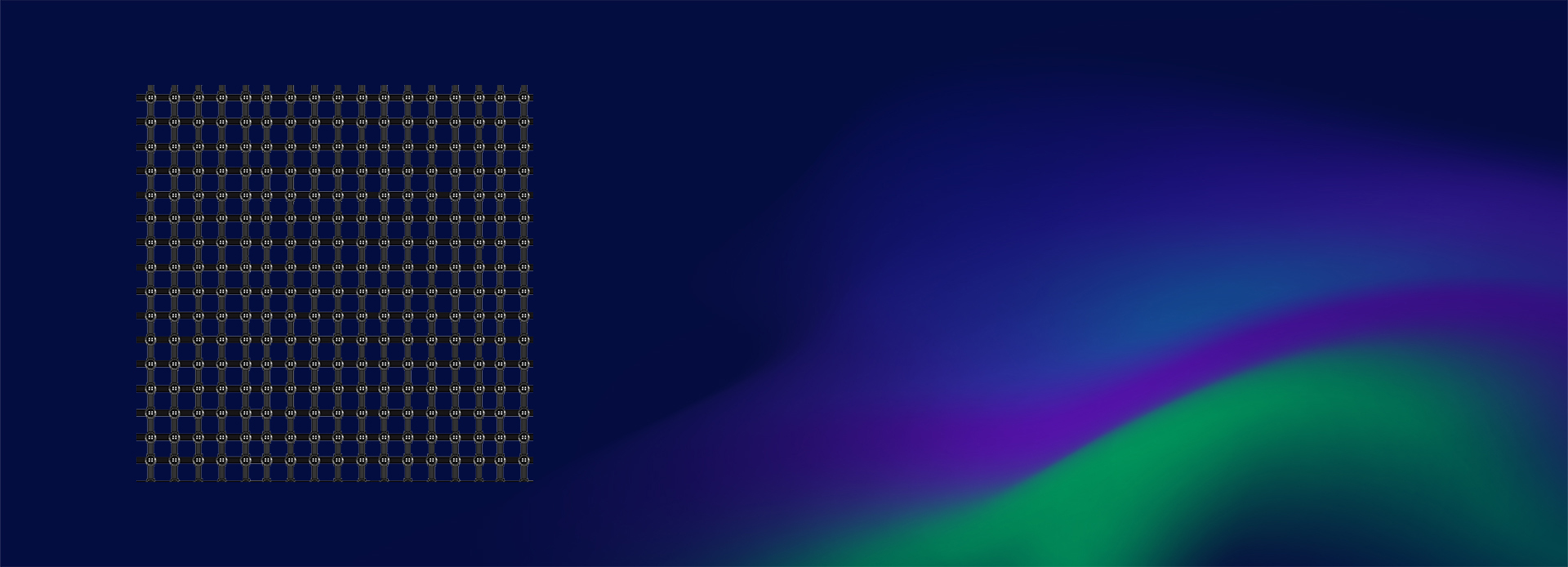

Highly Transparent

Highly Transparent

45-80% Transparency

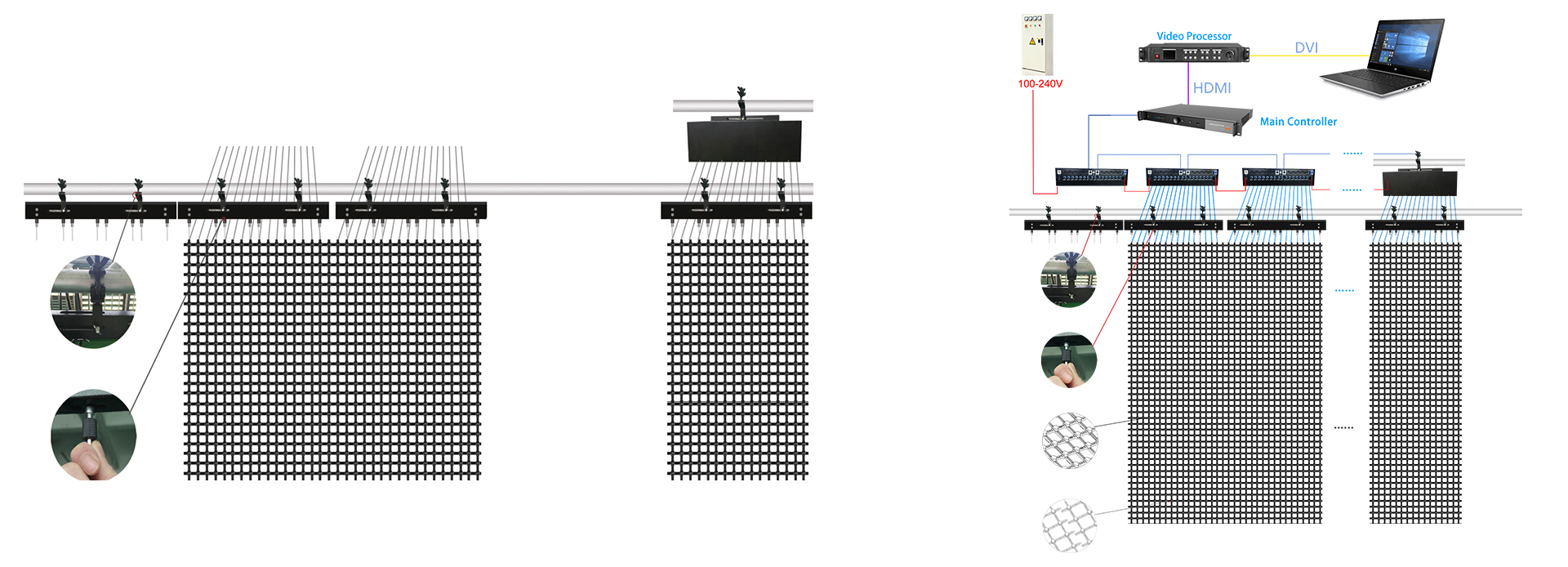

Easy Maintenance

Easy Maintenance

Easy to install and maintain

Higher Transparency

Higher Transparency

Up to 90% Transparency,
Deliver a more transparent display.

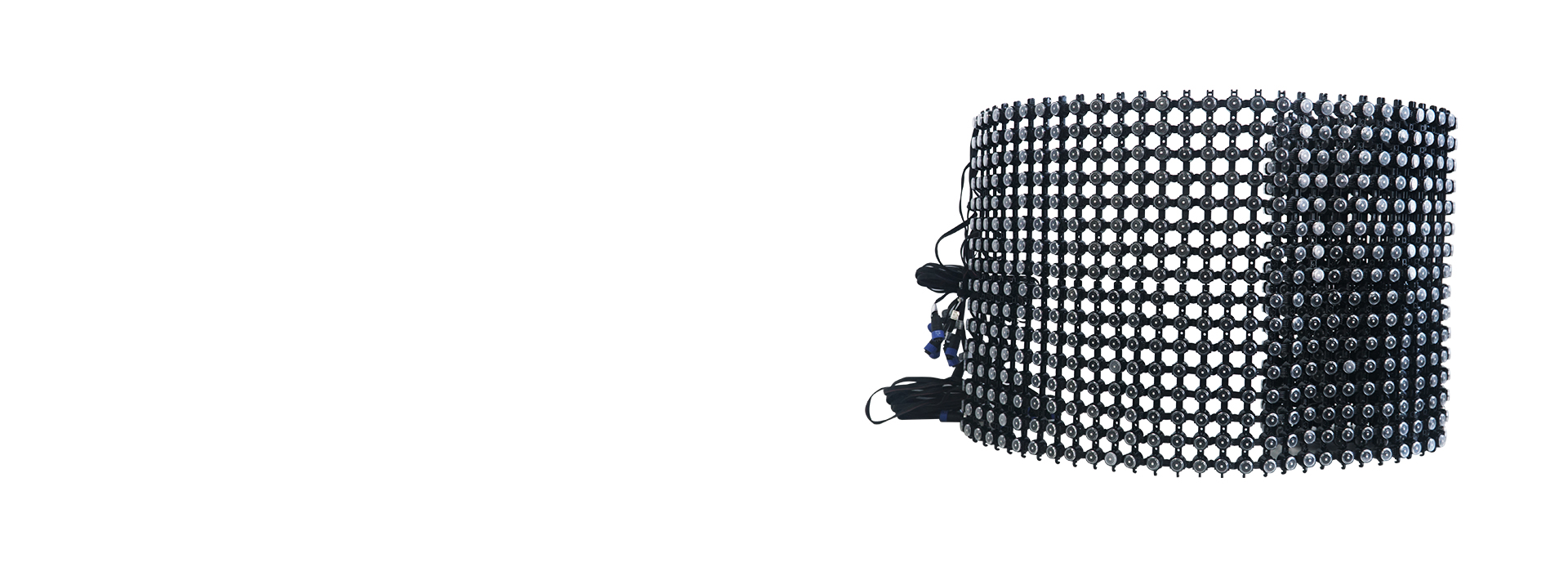

Flexible Mesh Screen

Flexible Mesh Screen

Bendable, shaped displays,
coverage of various irregular structures.
Waterproof

Waterproof

IP66 waterproof rating, UV resistant,
low temperature resistant, fire resistant.

Specs

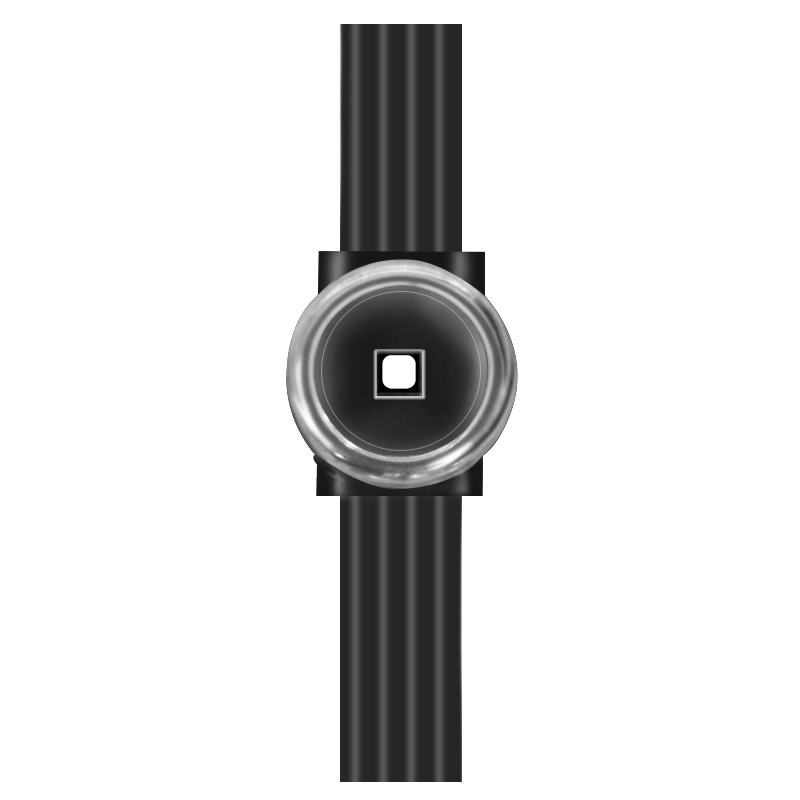

ZR18-1Dot
Part Number   ZR18-1Dot-P31.25 ZR18-1Dot-P40 ZR18-1Dot-P50 ZR18-1Dot-P55 ZR18-1Dot-P62.5 ZR18-1Dot-P75 ZR18-1Dot-P100
Pixel Pitch 31.25mm 40mm 50mm 55mm 62.5mm 75mm 100mm
Pixel Density  1024dot/m² 625dot/m² 400dot/m² 330dot/m² 256dot/m² 178dot/m² 100dot/m²
Brightness 3000CD/m² 1875CD/m² 1200CD/m² 1000CD/m² 768CD/m² 530CD/m² 300CD/m²
Module Size 0.25m*10.3m max. 0.32m*13.2m max. 0.4m*16.5m max. 0.44m*18m max. 0.5m*20.6m max. 0.6m*24.8m max. 0.4m*33m max.
Max. Power Consumption  460W/m² 282W/m² 180W/m² 149W/m² 116W/m² 80W/m² 45W/m²
Ave. Power Consumption 154W/m² 94W/m² 60W/m² 50W/m² 39W/m² 27W/m² 15W/m²
Transparency 42%/m² 54%/m² 63%/m² 66%/m² 70%/m² 75%/m² 80%/m²
Screen Weight  9.4kg/m² 6.3kg/m² 4.26kg/m² 4.2kg/m² 3.25kg/m² 2.74kg/m² 2.3kg/m²
Module Resolution 8dots*330dots max. 4dots*330dots max.
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
Unit Power Consumption 0.45W
DOT Size L20XW18XH14(mm)    D18mm
IC Driving IC HBS1910
Video Source DVI, HDMI, VGA
LED Type RGB 3IN1 SMD3535*1 Nationstar Golden Wire
Viewing Angle  120°(H)/120°(V)
Gray Scale 16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission CAT: 100m or Fiber Optic
Input Voltage AC110~ 240V,  50/60Hz  (DC7.5/12V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE, ROHS, FCC

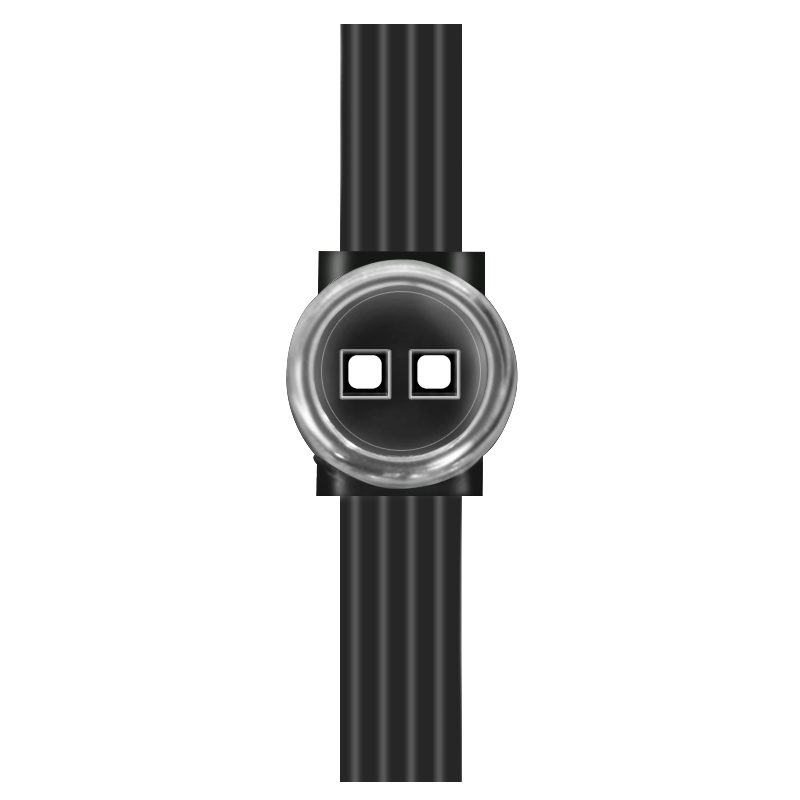

ZR18-2Dot
Part Number   ZR18-2Dot-P31.25 ZR18--2Dot-P40 ZR18-2Dot-P50 ZR18-2Dot-P55 ZR18-2Dot-P62.5 ZR18-2Dot-P75 ZR18-2Dot-P100
Pixel Pitch 31.25mm 40mm 50mm 55mm 62.5mm 75mm 100mm
Pixel Density  1024dot/m² 625dot/m² 400dot/m² 330dot/m² 256dot/m² 178dot/m² 100dot/m²
Brightness 6100CD/m² 3750CD/m² 2400CD/m² 1980CD/m² 1500CD/m² 1000CD/m² 600CD/m²
Module Size 0.25m*7.8m max. 0.32m*10m max. 0.4m*12.5m max. 0.44m*13.8m max. 0.5m*15.6m max. 0.6m*18.75m max. 0.4m*25m max.
Max. Power Consumption  615W/m² 375W/m² 240W/m² 198W/m² 154W/m² 107W/m² 60W/m²
Ave. Power Consumption 205W/m² 125W/m² 80W/m² 66W/m² 52W/m² 36W/m² 20W/m²
Transparency 42%/m² 54%/m² 63%/m² 66%/m² 70%/m² 75%/m² 80%/m²
Screen Weight  9.4kg/m² 6.3kg/m² 4.26kg/m² 4.2kg/m² 3.25kg/m² 2.74kg/m² 2.3kg/m²
Module Resolution 8dots*250dots max. 4dots*250dots max.
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
Unit Power Consumption 0.6W
DOT Size L20XW18XH14(mm)    D18mm
Driving IC HBS1910
Video Source DVI, HDMI, VGA
LED Type RGB 3IN1 SMD3535*2  (Nationstar Golden Wire)
Viewing Angle  120°(H)/120°(V)
Gray Scale 16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission CAT: 80m or Fiber Optic
Input Voltage AC110~ 240V,  50/60Hz  (DC12V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE, ROHS, FCC

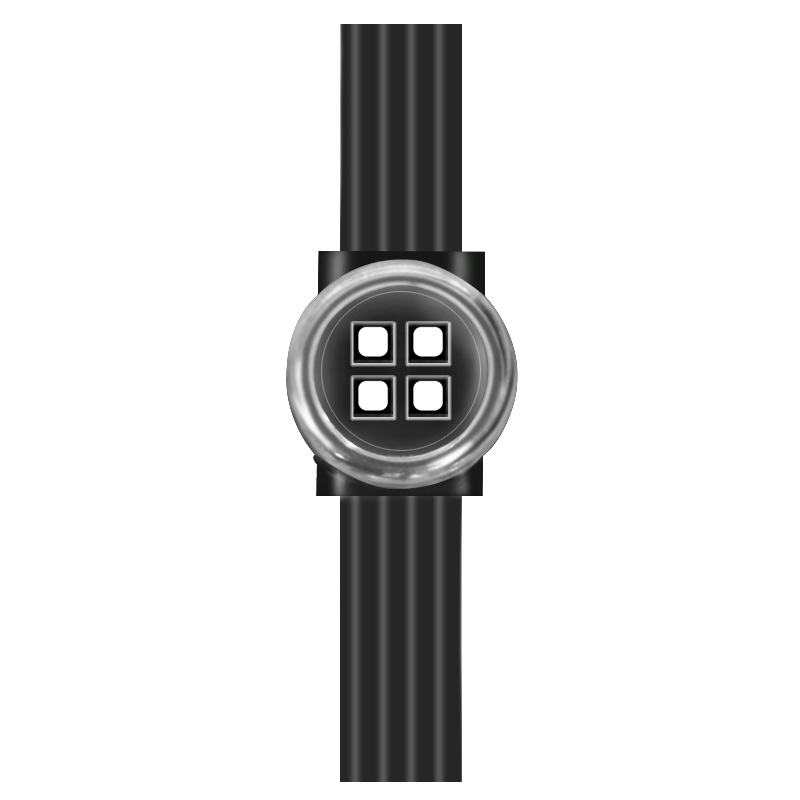

ZR18-4Dot
Part Number   ZR18-4Dot-P31.25 ZR18-4Dot-P40 ZR18-4Dot-P50 ZR18-4Dot-P55 ZR18-4Dot-P62.5 ZR18-4Dot-P75 ZR18-4Dot-P100
Pixel Pitch 31.25mm 40mm 50mm 55mm 62.5mm 75mm 100mm
Pixel Density  1024dot/m² 625dot/m² 400dot/m² 330dot/m² 256dot/m² 178dot/m² 100dot/m²
Brightness 10000CD/m² 6250CD/m² 4000CD/m² 3300CD/m² 2560CD/m² 1780CD/m² 1000CD/m²
Module Size 0.25m*5.187m max. 0.32m*6.64m max. 0.4m*8.3m max. 0.44m*9.13m max. 0.5m*10.375m max. 0.6m*12.45m max. 0.4m*16.6m max.
Max. Power Consumption  922W/m² 563W/m² 360W/m² 297W/m² 231W/m² 160W/m² 90W/m²
Ave. Power Consumption 308W/m² 188W/m² 120W/m² 99W/m² 77W/m² 53W/m² 30W/m²
Transparency 42%/m² 54%/m² 63%/m² 66%/m² 70%/m² 75%/m² 80%/m²
Screen Weight  9.4kg/m² 6.3kg/m² 4.26kg/m² 4.2kg/m² 3.25kg/m² 2.74kg/m² 2.3kg/m²
Module Resolution 8dots*166dots max. 4dots*166dots max.
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
Unit Power Consumption 0.9W
DOT Size L20XW18XH14(mm)    D18mm
Driving IC HBS1910
Video Source DVI, HDMI, VGA
LED Type RGB 3IN1 SMD2727*4  (Nationstar Golden Wire)
Viewing Angle  120°(H)/120°(V)
Gray Scale 16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission CAT: 80m or Fiber Optic
Input Voltage AC110~ 240V,  50/60Hz  (DC15V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE, ROHS, FCC

ZR18-6Dot  Specification
Part Number   ZR18-6Dot-P50 ZR18-6Dot-P55 ZR18-6Dot-P62.5 ZR18-6Dot-P75 ZR18-6Dot-P100
Pixel Pitch 50mm 55mm 62.5mm 75mm 100mm
Pixel Density  400dot/m² 330dot/m² 256dot/m² 178dot/m² 100dot/m²
Brightness 6000CD/m² 4950CD/m² 3840CD/m² 2670CD/m² 1500CD/m²
Module Size 0.4m*5.8m max. 0.44m*6.38m max. 0.5m*7.25m max. 0.6m*8.7m max. 0.4m*11.6m max.
Max. Power Consumption  520W/m² 429W/m² 333W/m² 232W/m² 130W/m²
Ave. Power Consumption 174W/m² 143W/m² 111W/m² 78W/m² 44W/m²
Transparency 63%/m² 66%/m² 70%/m² 75%/m² 80%/m²
Screen Weight  4.26kg/m² 4.2kg/m² 3.25kg/m² 2.74kg/m² 2.3kg/m²
Module Resolution 8dots*116dots max. 4dots*116dots max.
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
Unit Power Consumption 1.3W
DOT Size L20XW18XH14(mm)    D18mm
Driving IC HBS1910
Video Source DVI, HDMI, VGA
LED Type RGB 3IN1 SMD2727*6  (Nationstar Golden Wire)
Viewing Angle  120°(H)/120°(V)
Gray Scale 16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission CAT: 80m or Fiber Optic
Input Voltage AC110~ 240V,  50/60Hz  (DC24V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE, ROHS, FCC

ZR27-8Dot
Part Number   ZR27-8Dot-P100 ZR27-8Dot-P150 ZR27-8Dot-P200 ZR-8Dot-P250 ZR-8Dot-P300
Pixel Pitch 100mm 150mm 200mm 250mm 300mm
Pixel Density  100dot/m² 45dot/m² 25dot/m² 16dot/m² 11dot/m²
Brightness 2000CD/m² 900CD/m² 500CD/m² 320CD/m² 220CD/m²
Max.Power Consumption  180W/m² 81W/m² 45W/m² 29W/m² 20W/m²
Ave.Power Consumption 60W/m² 27W/m² 15W/m² 10W/m² 7W/m²
Transparency 80%/m² 87%/m² 90%/m² 92%/m² 93%/m²
Screen Weight  1.6Kg/m² 1.0Kg/m² 0.6Kg/m² 0.4Kg/m² 0.3Kg/m²
Module Resolution 4dots*86dots max. 4dots*86dots max. 2dots*86dots max. 2dots*86dots max. 2dots*86dots max.
Module Size 0.4m*8.6m.max 0.6m*12.9m.max 0.4*17.2m.max 0.5m*21.5m.max 0.6m*25.8m.max
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
DOT Size L26.8XW26.8XD16.7(mm)   D27
Unit Power Consumption     1.8W
Driving IC     HBS1910
Video Source DVI, HDMI, VGA
LED Type RGB 3IN1 SMD2727*8  (Nationstar Golden Wire)
Viewing Angle  120°(H)/120°(V)
Gray Scale 16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission     CAT: 80m or Fiber Optic
Operation Power AC110~ 240V,  50/60Hz  (DC15V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE ,ROHS

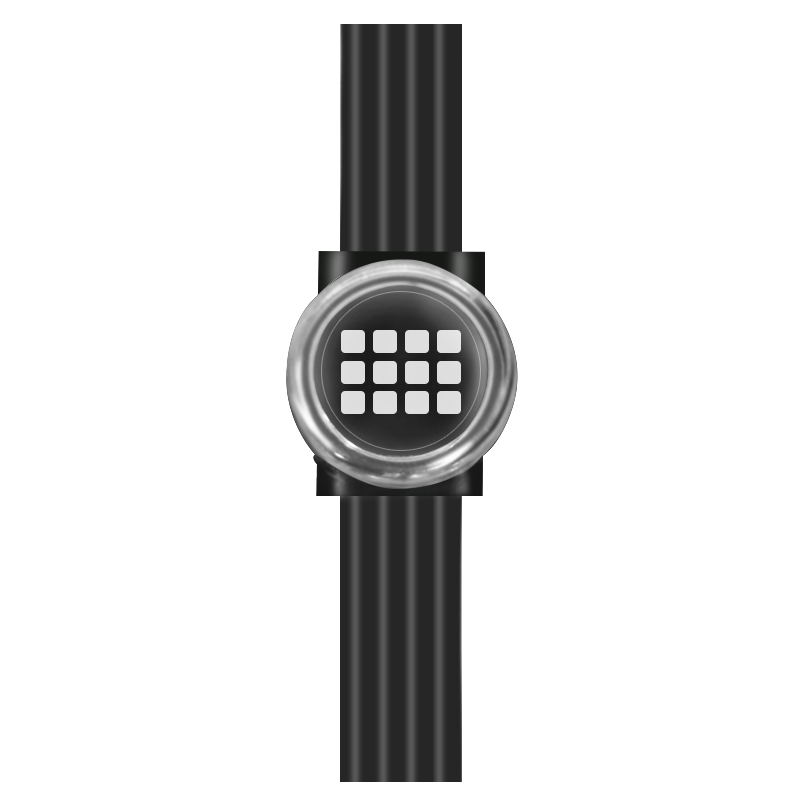

ZR27-12Dot
Part Number   ZR27-12Dot-P100 ZR27-12Dot-P150 ZR27-12Dot-P200 ZR27-12Dot-P250 ZR27-12Dot-P300
Pixel Pitch 100mm 150mm 200mm 250mm 300mm
Pixel Density  100dot/m² 45dot/m² 25dot/m² 16dot/m² 11dot/m²
Brightness 3000CD/m² 1350CD/m² 750CD/m² 480CD/m² 330CD/m²
Max. Power Consumption  270W/m² 121W/m² 67W/m² 43W/m² 30W/m²
Ave. Power Consumption 90W/m² 40W/m² 22W/m² 14W/m² 10W/m²
Transparency 80%/m² 87%/m² 90%/m² 92%/m² 93%/m²
Screen Weight 1.6Kg/m² 1.0Kg/m² 0.6Kg/m² 0.4Kg/m² 0.3Kg/m²
Module Resolution 4dots*56dots max. 4dots*56dots max. 2dots*56dots max. 2dots*56dots max. 2dots*56dots max.
Module Size 0.4m*5.6m max. W0.6m*8.4m max. W0.4m*11.2m max. W0.5m*14m max. W0.6m*16.8m max.
Sub-Controller Weight  640W-5.8kg, 1280W-7.2kg, 2100W-9kg, 2400W-9kg
Unit Power Consumption 2.7W
DOT Size L26.8XW26.8XD16.7(mm)   D27
Driving IC HBS1910
Video Source DVI.HDMI.VGA
LED Type RGB 3IN1 SMD2727*12  (Nationstar Golden Wire)
Viewing Angle  120°(H)/120°(V)
Gray Scale     16bit
Display Scale 68.7 Bilion
Refresh Rate ≥1920Hz
Control System Nova
Signal Transmission     CAT: 100m or Fiber Optic
Input Voltage AC110~ 240V,  50/60Hz  (DC24V)
Working Environment  Temperature -30℃~+60℃，Humidity10~90% RH
IP Rating  IP66
Operating Life ≥100,000hours
Certificate CE, ROHS
