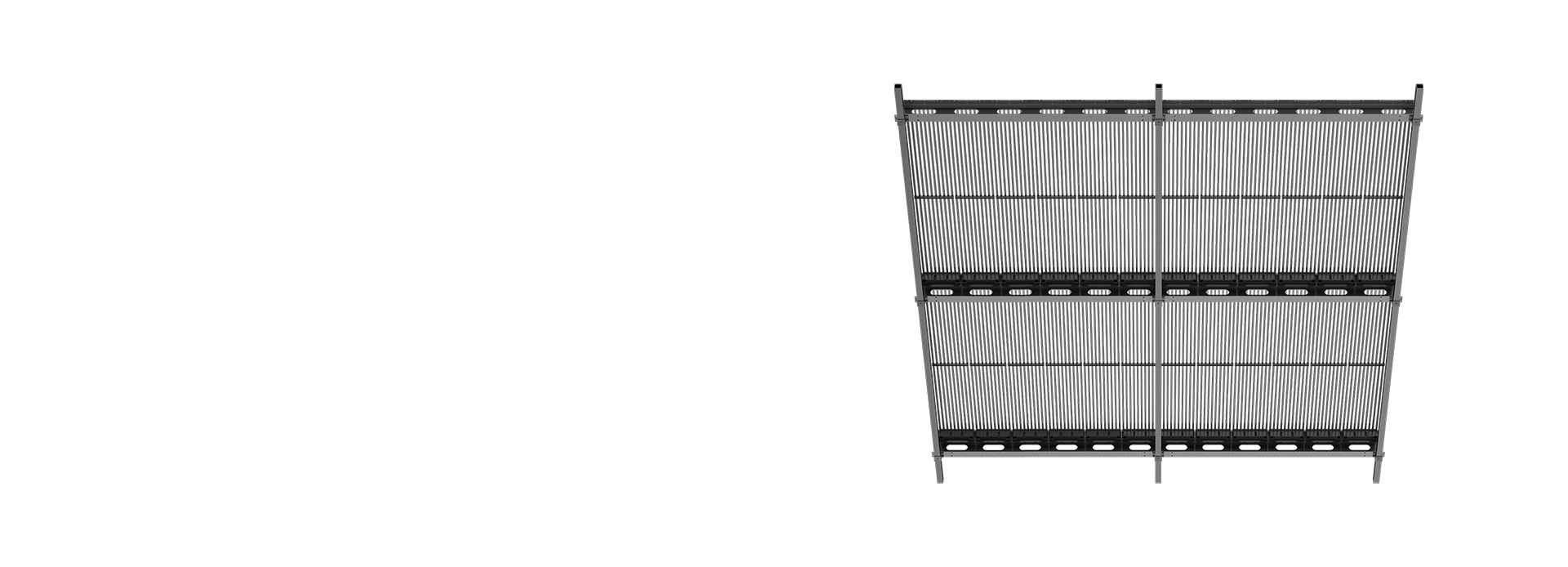

LED Grille Screen

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display.

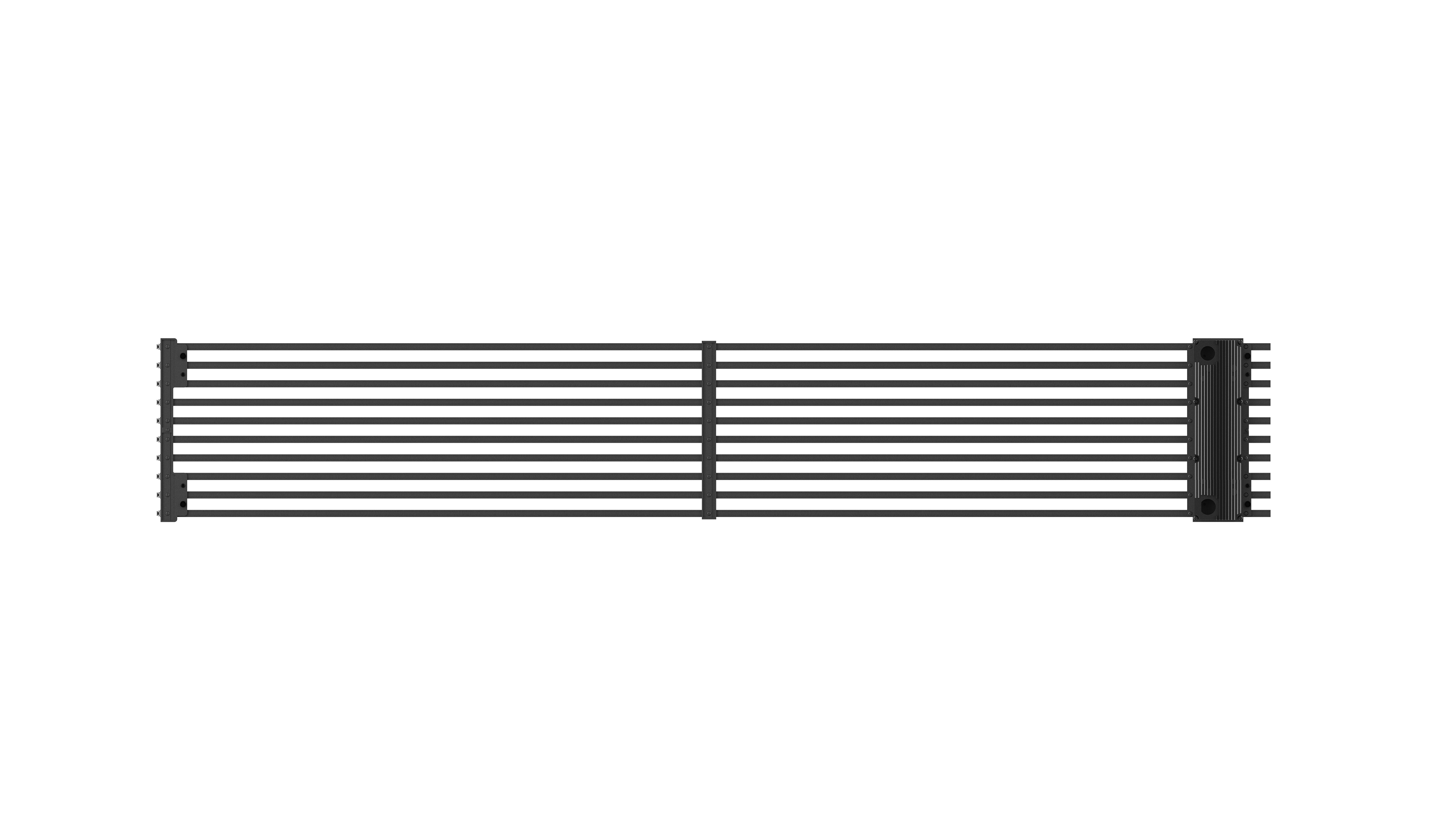

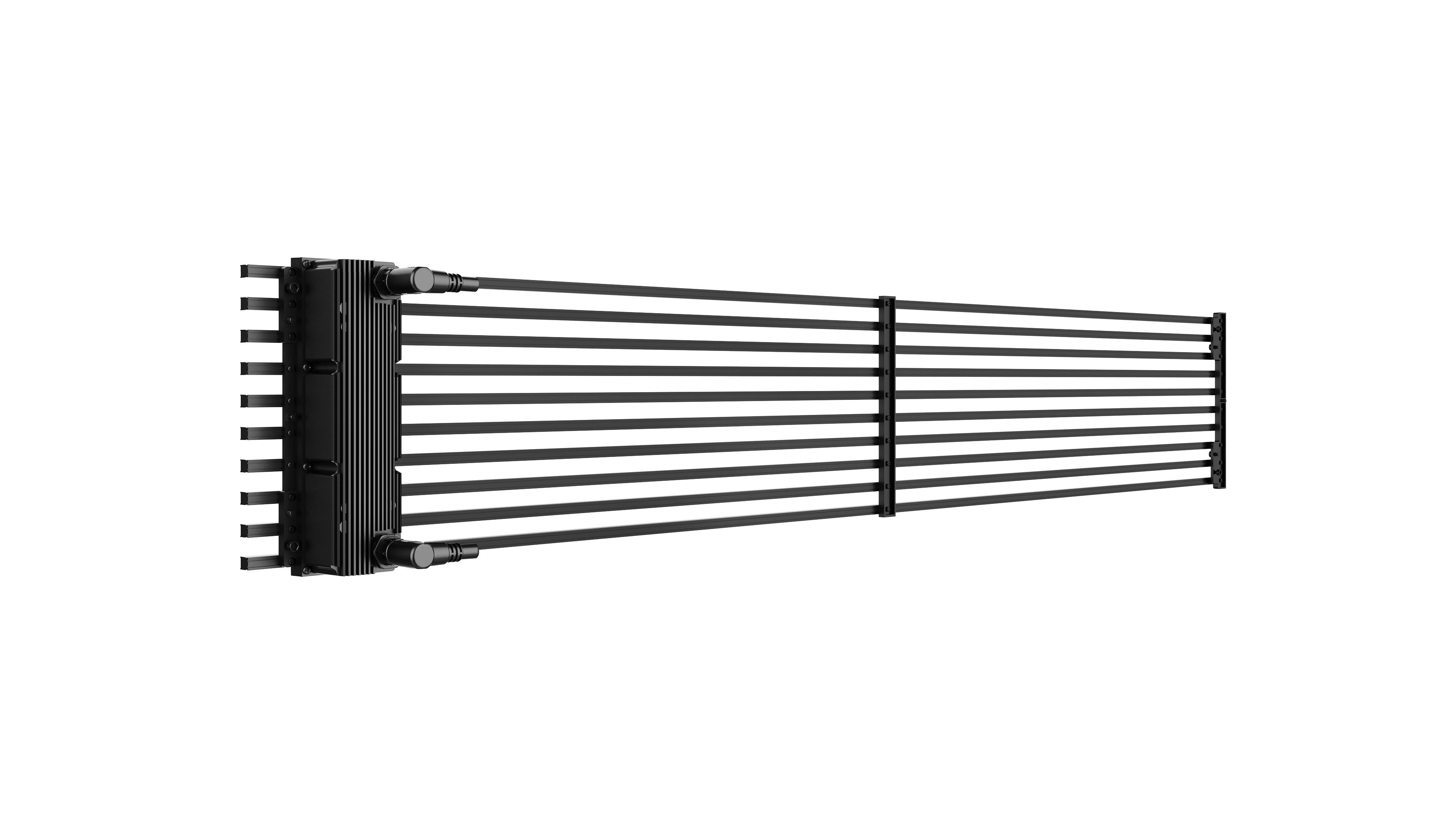

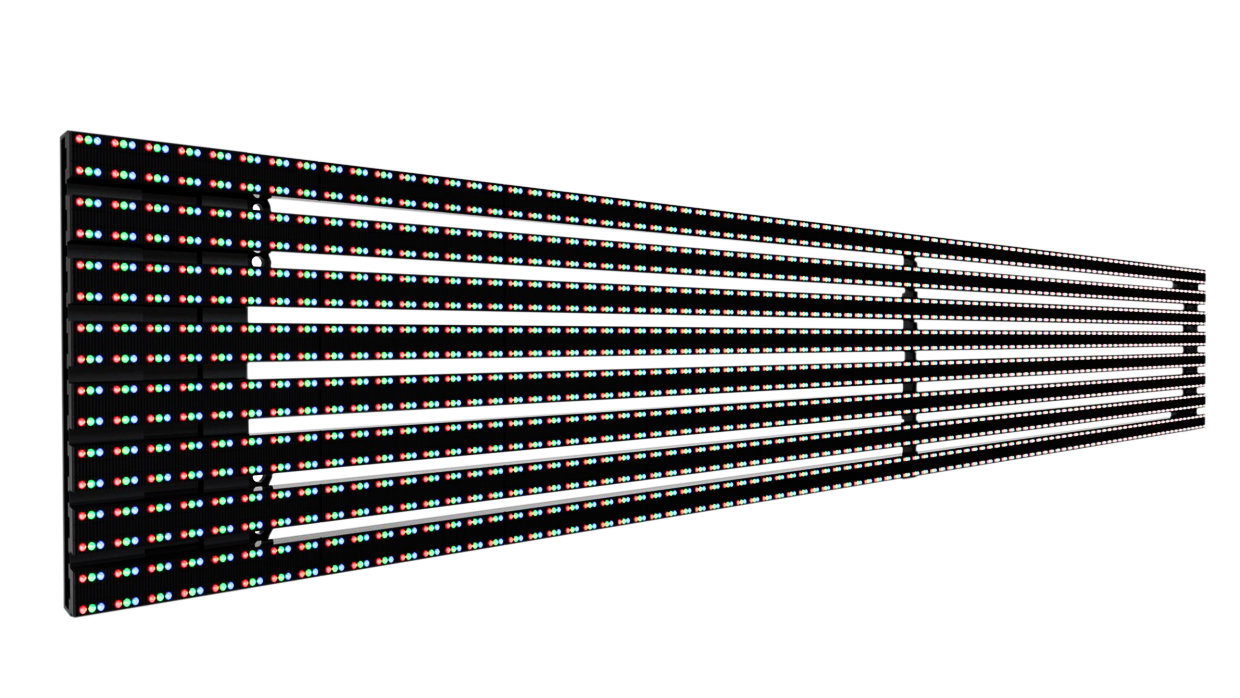

  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs).
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged.

LED MESH SCREEN

Aluminum

Aluminum

Lightweight & Ultra-Thin 18kg/sqm

High Brightness

High Brightness

8000nits

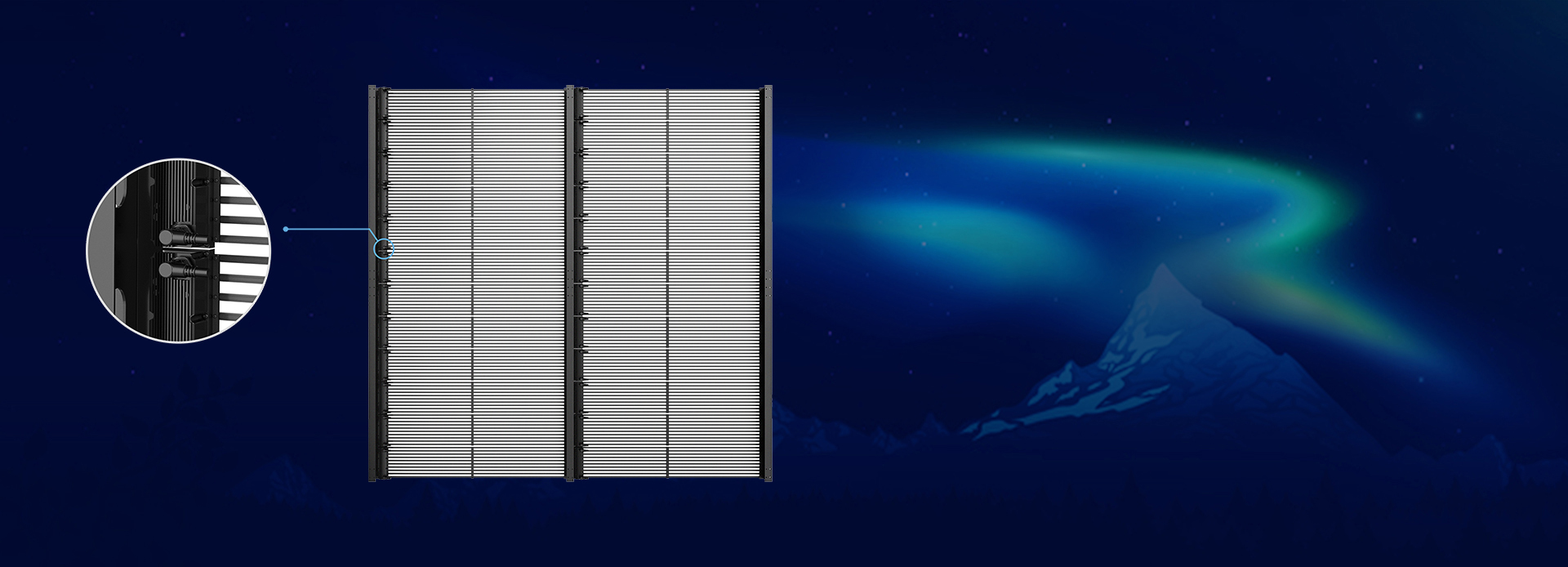

Transparent

Transparent

Up to 60% Transparency

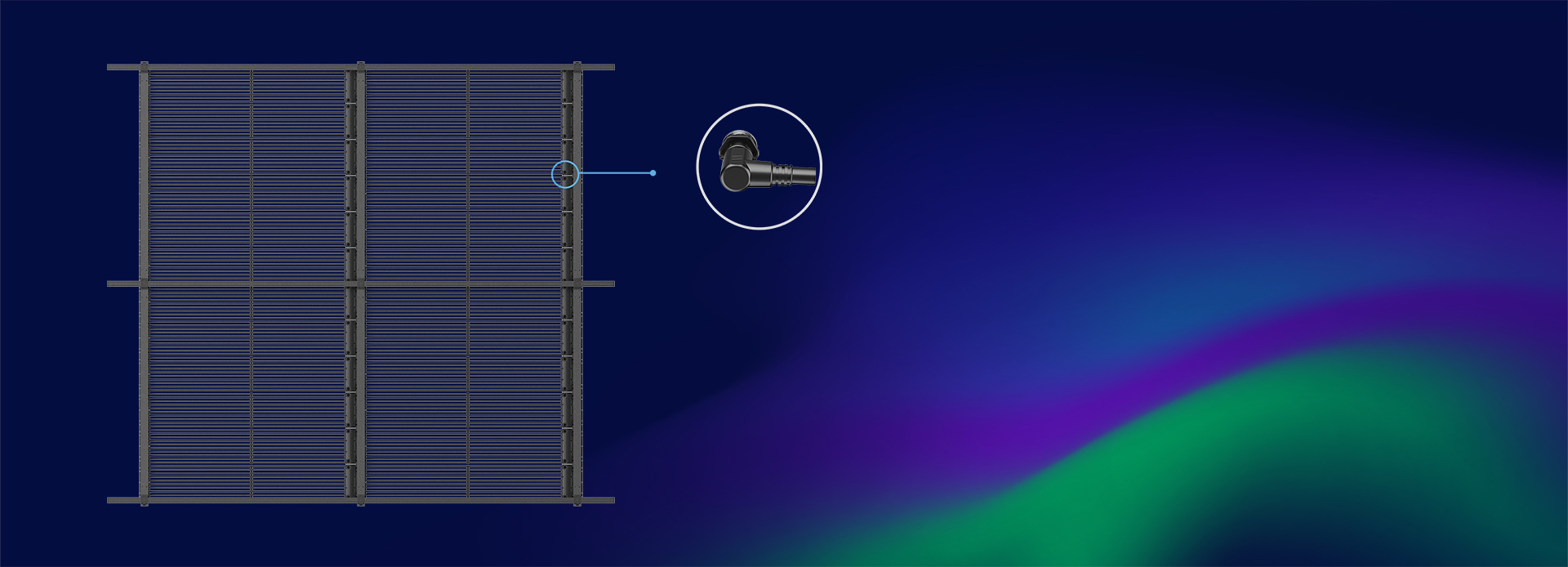

Maintenance

Maintenance

Easy to install and maintain

LED Grille Screen

LED Grille Screen

LED Grille Screen
LED Grille Screen

LED Grille Screen

LED Grille Screen
LED Grille Screen

LED Grille Screen

LED Grille Screen
LED Grille Screen

LED Grille Screen

LED Grille Screen
Specs
Product Model ZR-GS-P25-16 ZR-GS-P25-25 ZR-GS-P31.25-31.25
Shell Material Aluminum Profile Aluminum Profile Aluminum Profile
LED Configuration DIP 1R1G1B DIP 1R1G1B DIP 1R1G1B
Pixel Pitch(H) 25.6mm/16mm 25.6mm/16mm 32mm/31.25mm
Pixel Density 2438dots/㎡ 1562dots/㎡ 1000dots/㎡

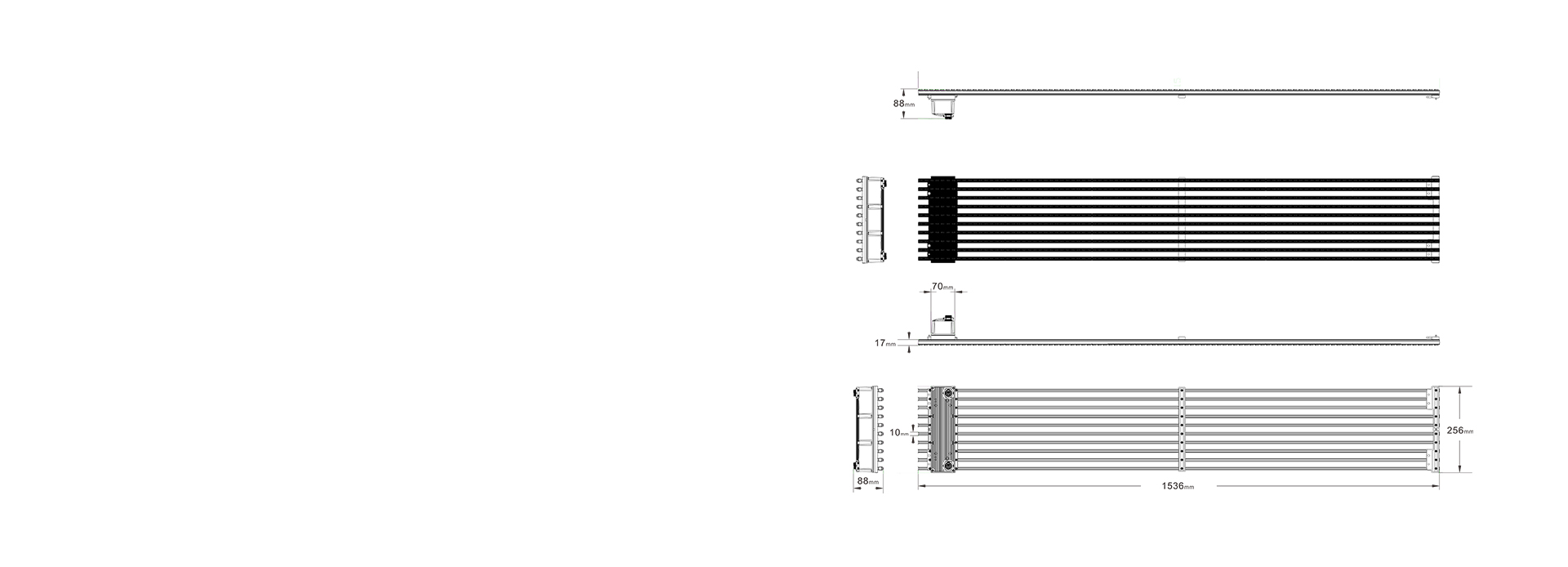

Module Dimension 256X1536mm 256X1600mm 256X1500mm
Module Resolution 10x96 dots 10x64 dots 8x48 dots
Brightness 8000nits 6000-8000nits 7000nits
Transparency 60% 60% 70%
Weight 18kg/m2 18kg/m2 18kg/m2
Input Voltage AC 110-240V AC 110-240V AC 110-240V
Max.Power Consumption 400w/m 400w/m 400w/m
IP Rating IP67 IP67 IP67
Gray Scale RGB 16384bit(3x14bit) RGB 16384bit(3x14bit) RGB 16384bit(3x14bit)
Refresh Rate ≥1920 Hz ≥1920 Hz ≥1920 Hz
Repeat Frequency ≥60Hz ≥60Hz ≥60Hz
Working Environment T: -30℃-60℃; H: 10%-90% T: -30℃-60℃; H: 10%-90% T: -30℃-60℃; H: 10%-90%
