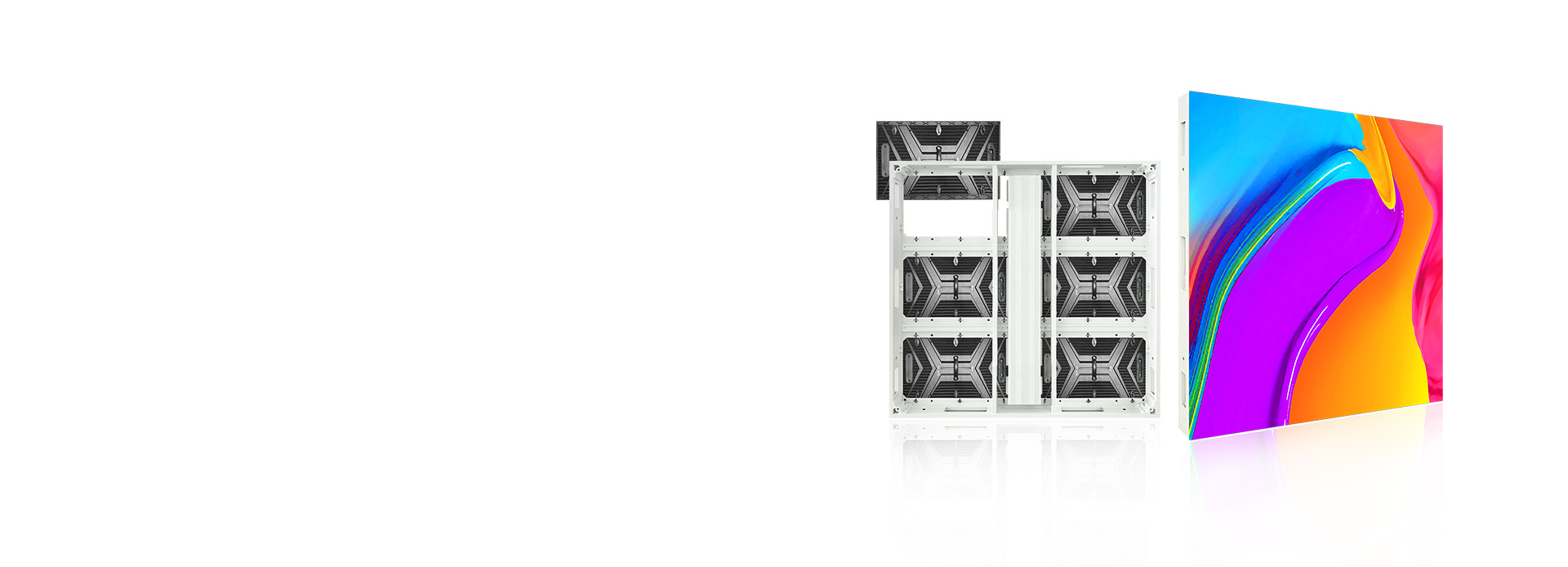

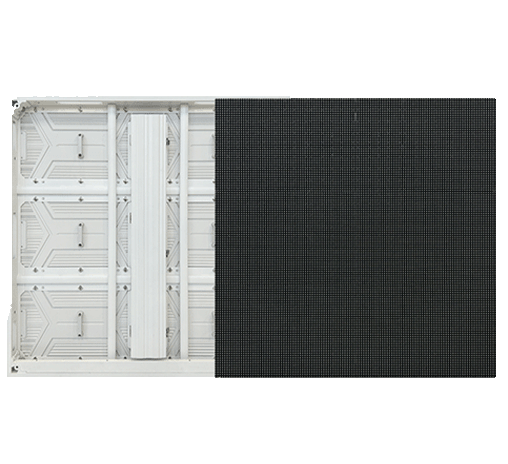

LED Cabinet Screen

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display.
  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs).
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged.

LED Cabinet Screen

Simplistic

Simplistic

Easy to install and maintain

Adaptive

Adaptive

Suitable for use in most weather conditions

Bright Colour

Bright Colour

Super Bright Outdoor Display

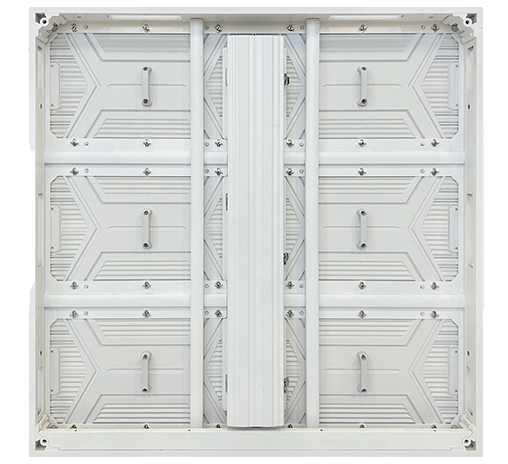

Wall-mount Installation

Wall-mount Installation

Install Screen Panels without Steel Frames

Overwhelming

Overwhelming

The best candidate of outdoor stunning visual experience

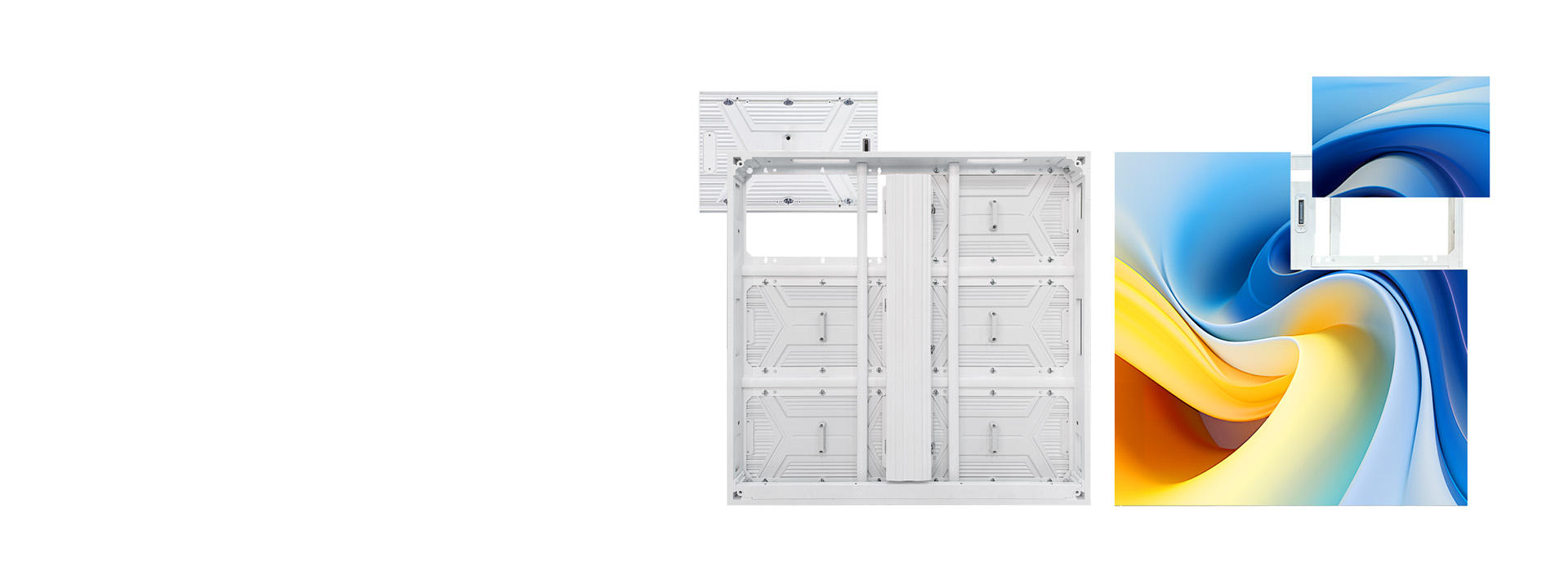

Transformer

Transformer

Screen modules can be detached from the steel frame,
and mounted to the wall at your will
Adaptive

Adaptive

IP65 Waterproof,
Functioning in various environment
Gradient

Gradient

Gradient flow of colourful display
Specs
Product model ZR-OF-P5.7 ZR-OF-P6.67 ZR-OF-P8 ZR-OF-P10
Pixel spacing 5.7mm 6.67mm 8mm 10mm
Lamp beads 5MD2727 SMD2727 SMD2727 SMD2727

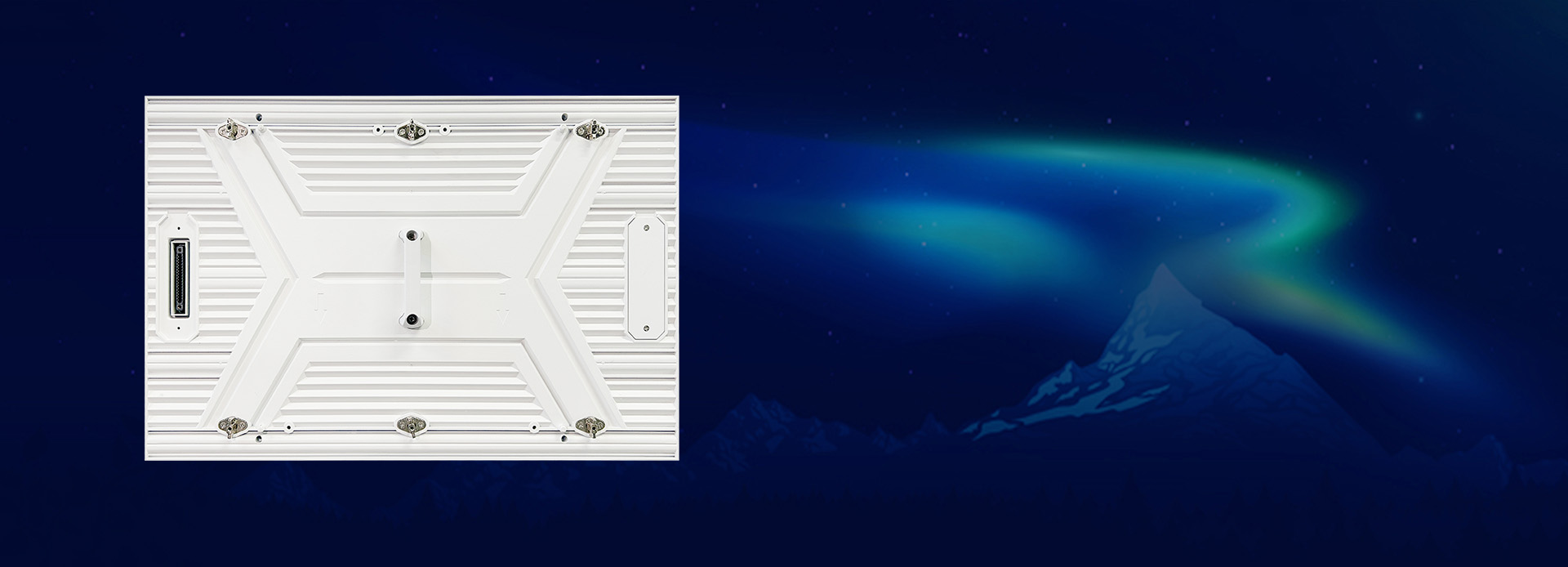

Module Size 480x320mm 480x320mm 480x320mm 480x320mm
Module Resolution 84x56dots 72x48dots 60x40dots 48x32dots
Box size 960x960x85mm 960x960x85mm 960x960x85mm 960x960x85mm
Box resolution 168x168dots 144x144dots 120x120dots 96x96dots
Pixel density 30625dots/m? 22500dots/m? 15625dots/m? 10000dots/m?
brightness 6000nits 6000nits 6000nits 6000nits
power waste Max.700W/㎡ Ave.210W/㎡
refresh frequency 1920HZ-3840HZ
Box material aluminium
Box weight 22kg
Maintenance methods Front and rear maintenance
viewing angle 160°120
IP level 1P65
working voltage AC110-240V
work environment -30°C to+60°C,10%-90%RH
