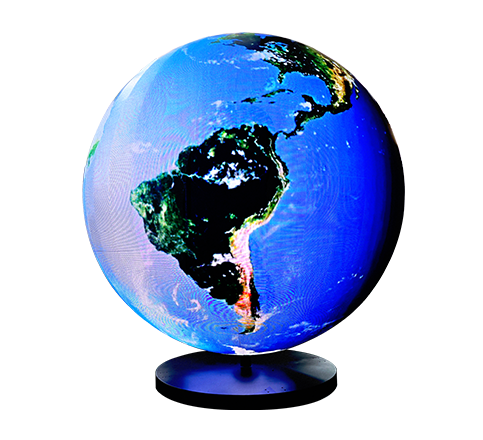

LED sphere screen

  • Versatile LED sphere screens for indoor and outdoor use feature high light transmittance and special-shaped display options, making them ideal for any setting.
  • Our LED sphere screens ensure stable operation in extreme temperatures (-20°C to +80°C) and come with IP67 protection.
  • These LED sphere screens boast a waterproof design, lightweight construction, and easy maintenance, ensuring longevity and reliability.
  • With 360-degree viewing capabilities, full-color video playback, and seamless integration for live broadcasts, our LED sphere screens provide immersive visual experiences that captivate audiences.
Copied

LED sphere screen

Wide application scenarios

Wide application scenarios

Support indoor and outdoor display, customizable

Easy to install

Easy to install

Magnetic suction method, simple maintenance

Seamless splicing

Seamless splicing

360° interactive experience

360° interactive experience

Seamless splicing

Seamless splicing

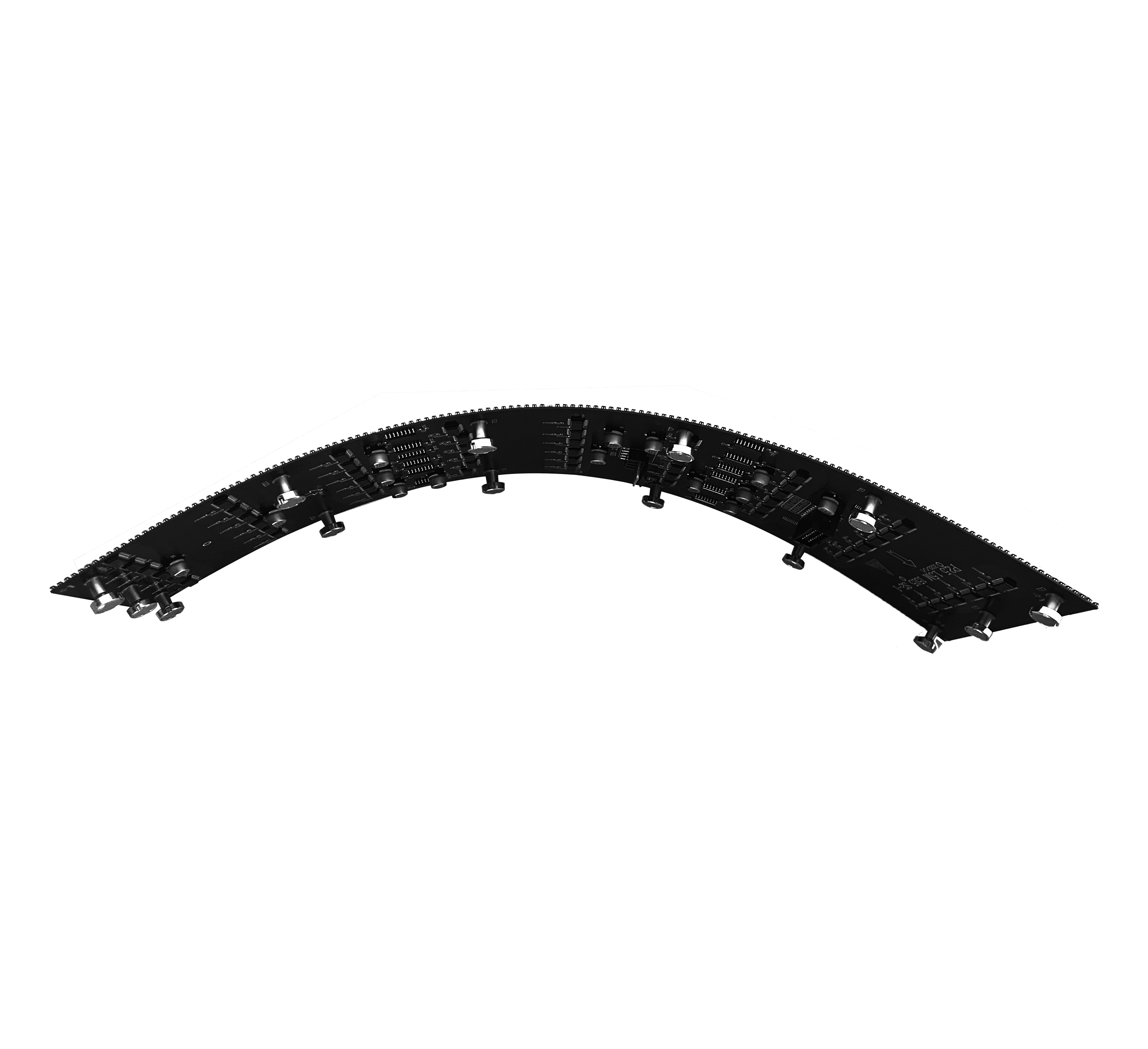

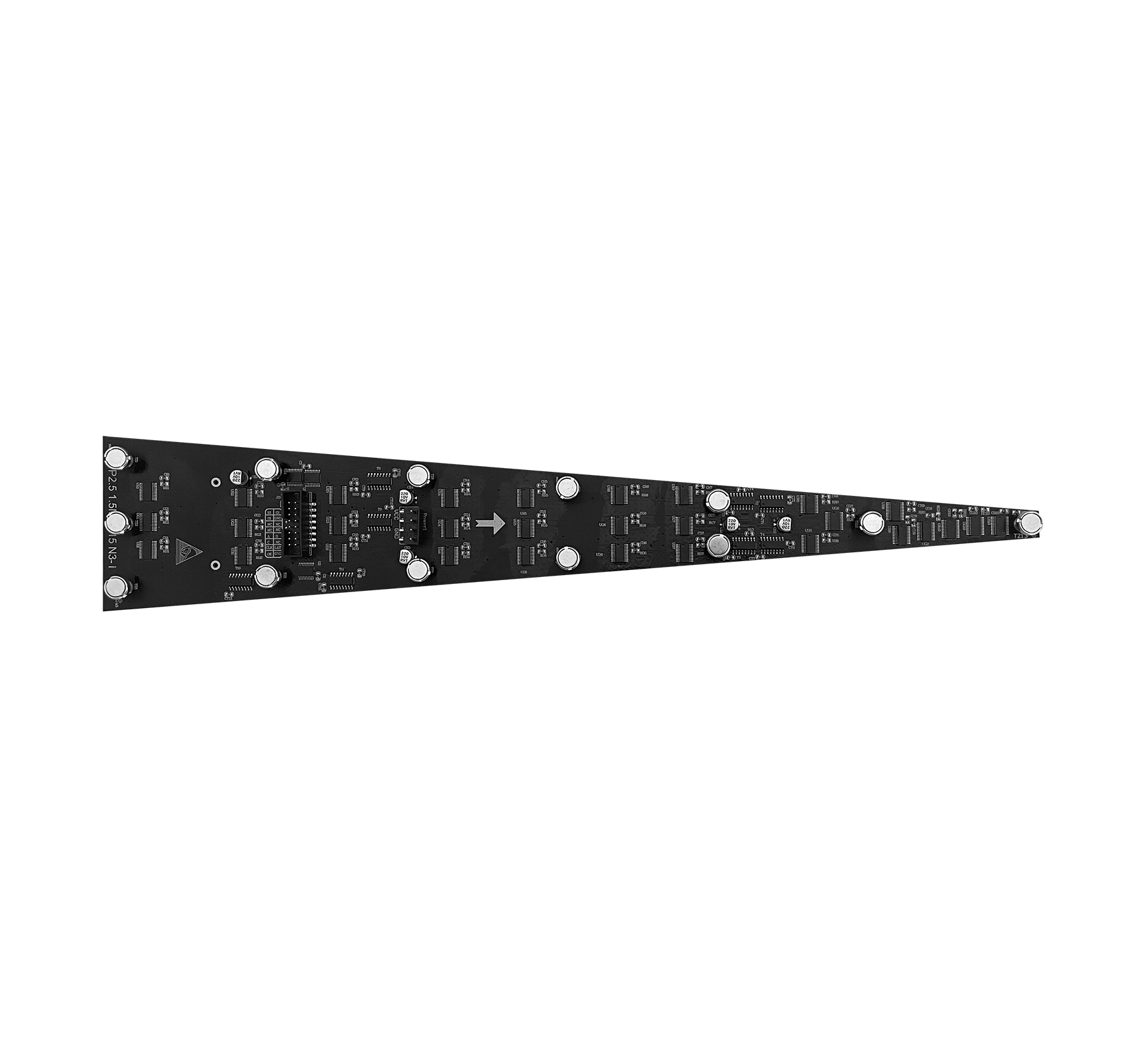

adopting trapezoidal line design, it can achieve seamless splicing
Magnetic suction design

Magnetic suction design

magnetic suction is installed on the outer shell steel structure until it covers the entire sphere
360° interactive experience

360° interactive experience

in a 360-degree panoramic environment, through the images and videos displayed on the screen, you can feel the immersive visual impact
Wide application scenarios

Wide application scenarios

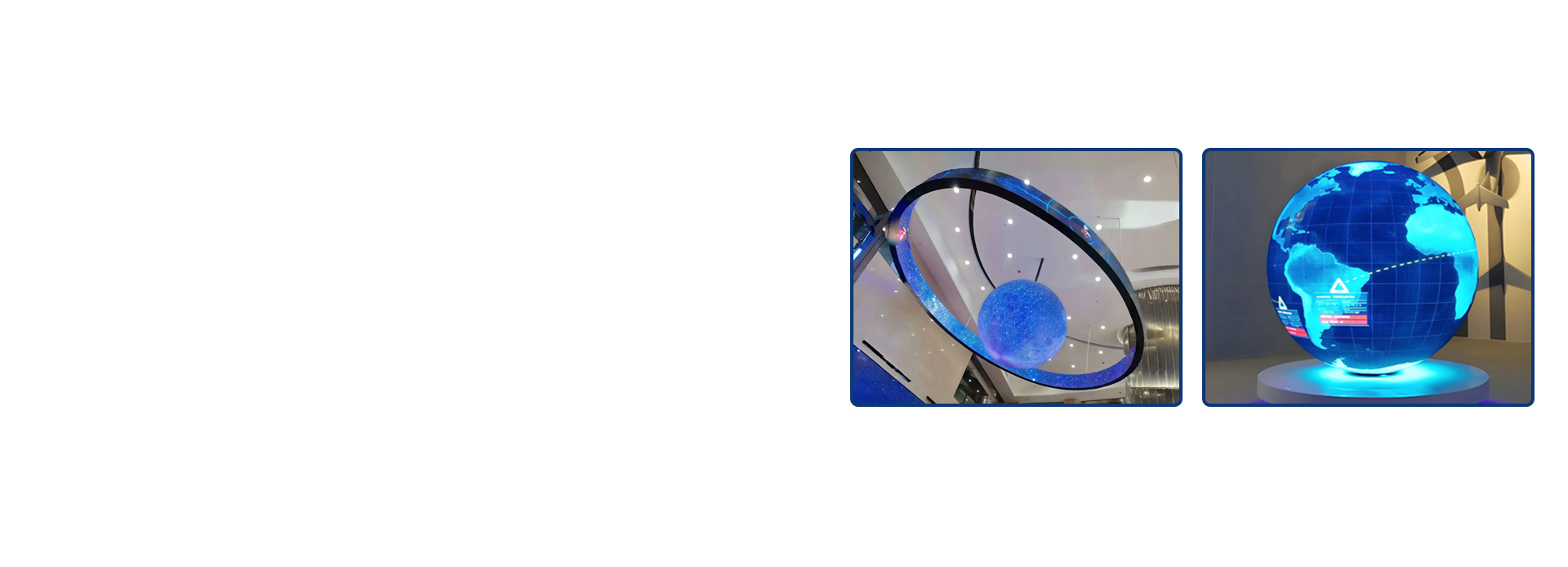

customizable, supports floor installation, hoisting, embedded installation, etc., can be installed indoors and outdoors
Specs
     Specification  ZR-SP-P2-A  ZR-SP-P2-B  ZR-SP-P2.5-A  ZR-SP-P2.5-B  ZR-SP-P3-A  ZR-SP-P3-B
 Standard Series
 Diameter  1.5m  2m  1m  2m  1.5m  1.8m
 Pixel Pitch  2mm±10%  2mm±10%  2.5mm±10%  2.5mm±10%  3mm±10%  3mm±10%
 LED Encapsulation  SMD1212  SMD1212  SMD2121  SMD2121  SMD1515  SMD1515
 Resolution/pot/Sqm  250000Dots  250000Dots  160000Dots  160000Dots  111111Dots  111111Dots
 Optimum Sight Distance  2m～50m  2m～50m  2.5m～50m  2.5m～50m  3m～50m  3m～50m
 Brightness  ≥800nits
 Refresh Frequency  ≥3840Hz
 Ave.Power Consumption  ≤240W/m²
 Max.PowerConsumption  ≤800W/m²
 Weight  ≤30Kgs/Sqm
 Power Output  5V40A
 Operating Voltage  AC100V～240V
 Operating Frequency  50～60Hz
 Installation Mode  Floor Stand/Hanging
 Maintenance Mode  Front Service
 Module Fixed Mode  Magnet Attraction
 Waterproof Grade  IP20(Front)/IP20(Back)
     Specification   ZR-SP-P4   ZR-SP-P5  ZR-SP-P6
 Customized Series
 Diameter  Customized  Customized  Customized
 Pixel Pitch  4mm±10%  5mm±10%  6mm±10%
 LED Encapsulation  SMD2121  SMD2121  SMD2121
 Resolution/pot/Sqm    40000 Dots  27777 Dots
 Optimum Sight Distance  4m～50m  5m～50m  6m～50m
 Brightness  above 1000 nit
 Refresh Frequency  1920-3840Hz
 Ave.Power Consumption  240W/m²
 Max.PowerConsumption  800W/m²
 Weight  Customized
 Power Output  5V40A
 Operating Voltage  AC100V～240V
 Operating Frequency  50～60Hz
 Installation Mode  FloorStand /Hanging
 Maintenance Mode  Front/RearService
 Module Fixed Mode  MagnetAttraction/Screw Fixed
 Waterproof Grade  IP20/IP65
