Flexible LED Screen

  • The see-through LED transparent screen is an innovation that reduces the impact on architectural aesthetics, improves perspective and provides a new and unique display.
  • The screen consists of lightweight modules of different sizes (different pixel pitches are available according to project needs).
  • It is highly adaptable, moisture-proof, dust-proof, easy to maintain, and has a solid structure that is not easily damaged.
Copied

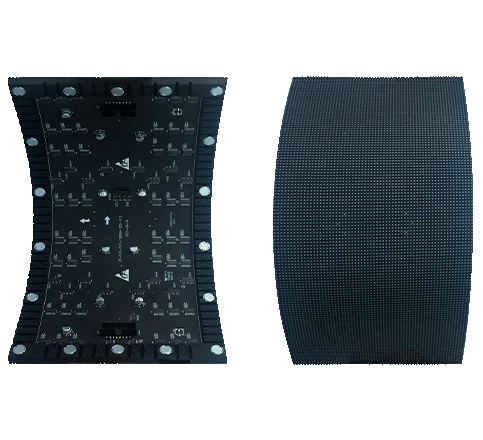

Flexible LED Screen

Ultra-flexible

Ultra-flexible

Silicone Frame Soft Screen Module

Eco-friendly

Eco-friendly

Heat dissipation requires no fans

Fantastic Display

Fantastic Display

Minimum pixel pitch: P1.25

Modular Design

Modular Design

Easy to install and maintain

Flexible

Flexible

A really soft modular screen
Magnetic Design

Magnetic Design

The back magnetizes like a building block and "clicks" into the big screen you want.
Silicone Material

Silicone Material

The four edges of the screen are soft and flexible silicone.

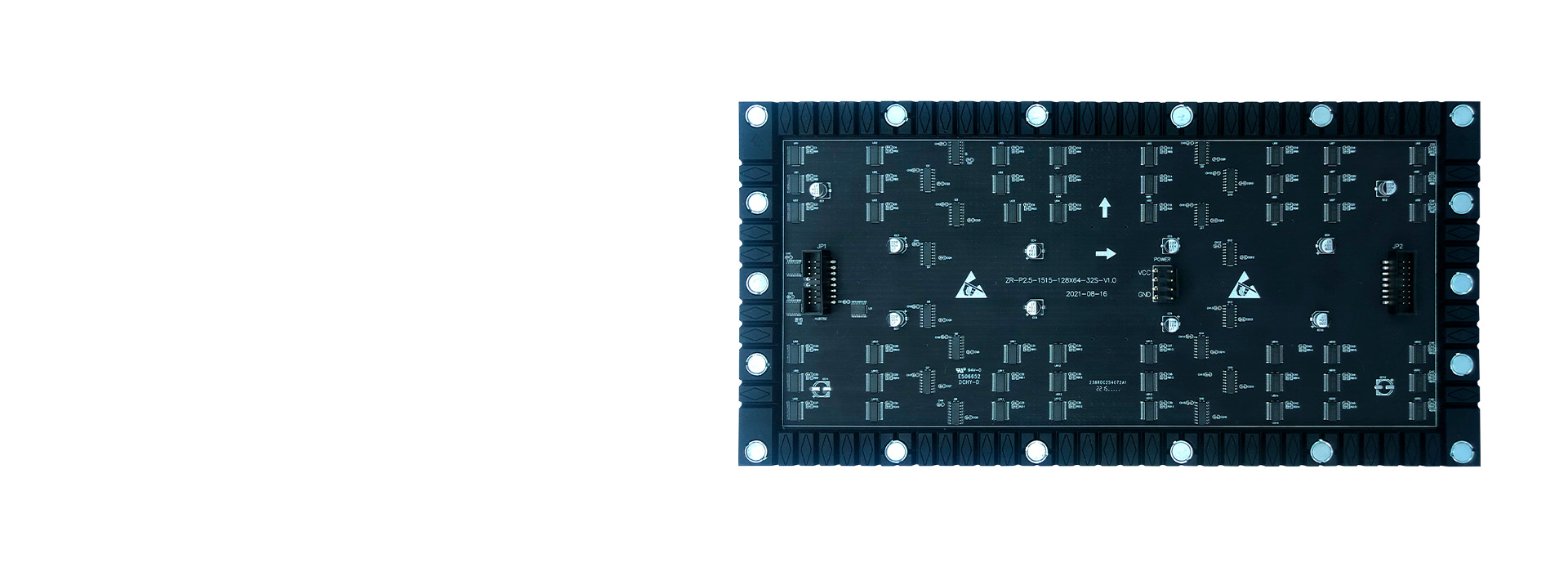

Soft Circuit Board

Soft Circuit Board

spherical screen.
Specs
320*160mm series Flexible Module Specification
Item ZR-BF-P1.88 ZR-BF-P2 ZR-BF-P2.5 ZR-BF-P3 ZR-BF-P4
Pixel Pitch 1.88mm 2mm 2.5mm 3mm 4mm
Pixel Density  282933dot/m2 250000dot/m2 160000dot/m2 111111dot/m2 62500dot/m2
Module Power 25W 24W 20W 16W 20W
Module Size  320X160mm 320X160mm 320X160mm 320X160mm 320X160mm
Module Resolution  170X85dot 160X80dot 128X64dot 104X52dot 80X40dot
Scan 1/43 1/40 1/32 1/26 1/20
Module Weight 0.32kg 0.30kg 0.28kg 0.26kg 0.24kg
LED Configuration SMD1515 SMD1515 SMD1515 SMD1515 SMD2020
Brightness 700-900nits 700-900nits 700-900nits 700-900nits 700-900nits
Refresh Rate 3840Hz 3840Hz 1920Hz / 3840Hz 1920Hz / 3840Hz 1920Hz / 3840Hz
Operating Voltage 4.2-5V 4.2-5V 4.2-5V 4.2-5V 4.2-5V
Rated Current 5A 4.8A 3.8A 3.2A 4A
Thickness 8.6mm 8.6mm 8.6mm 8.6mm 8.6mm




                                                                 240*120mm series Flexible Module Specification
Model ZR-SF-P1.25 ZR-SF-P1.579 ZR-SF-P1.667 ZR-SF-P1.875 ZR-SF-P2 ZR-SF-P2.5 ZR-SF-P3
Pixel Pitch 1.25mm 1.579mm 1.667mm 1.875mm 2mm 2.5mm 3mm
Pixel Density 640000dot/m2 400689dot/m2 358801dot/m2 284444dot/m2 250000dot/m2 160000dot/m2 111111dot/m2
Module Power 19W 17.5W 16W 19W 18W 14W 12.5W
Module Size 240X120mm 240X120mm 240X120mm 240X120mm 240X120mm 240X120mm 240X120mm
Module Resolution 192X96dot

152X76dot

 144X72dot 128X64dot 120X60dot 96X48dot 80X40dot
Scan 1/48 1/38 1/36 1/32 1/30 1/24 1/20
Module Weight 0.25kg 0.23kg 0.22kg 0.2kg 0.19kg 0.185kg 0.175kg
LED Configuration SMD1010 SMD1212 SMD1212 SMD1515
SMD1515
 SMD1515 SMD1515
Brightness 700-900nits

700-900nits

 700-900nits 700-900nits 700-900nits 700-900nits 700-900nits
Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz 1920Hz / 3840Hz 1920Hz / 3840Hz
Operating Voltage 4.2-5V 4.2-5V 4.2-5V 4.2-5V 4.2-5V 4.2-5V 4.2-5V
Rated Current 3.8A 3.2A 3A 3.8A 3.6A 2.8A 2.5A
Thickness 8.6mm 8.6mm 8.6mm 8.6mm 8.6mm 8.6mm 8.6mm
