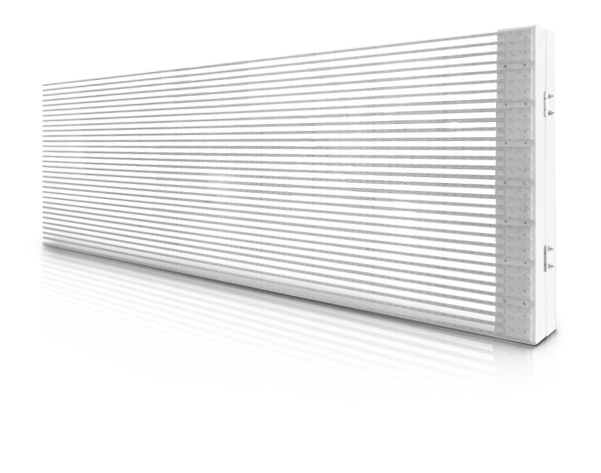

Adhesive LED Transparent Screen

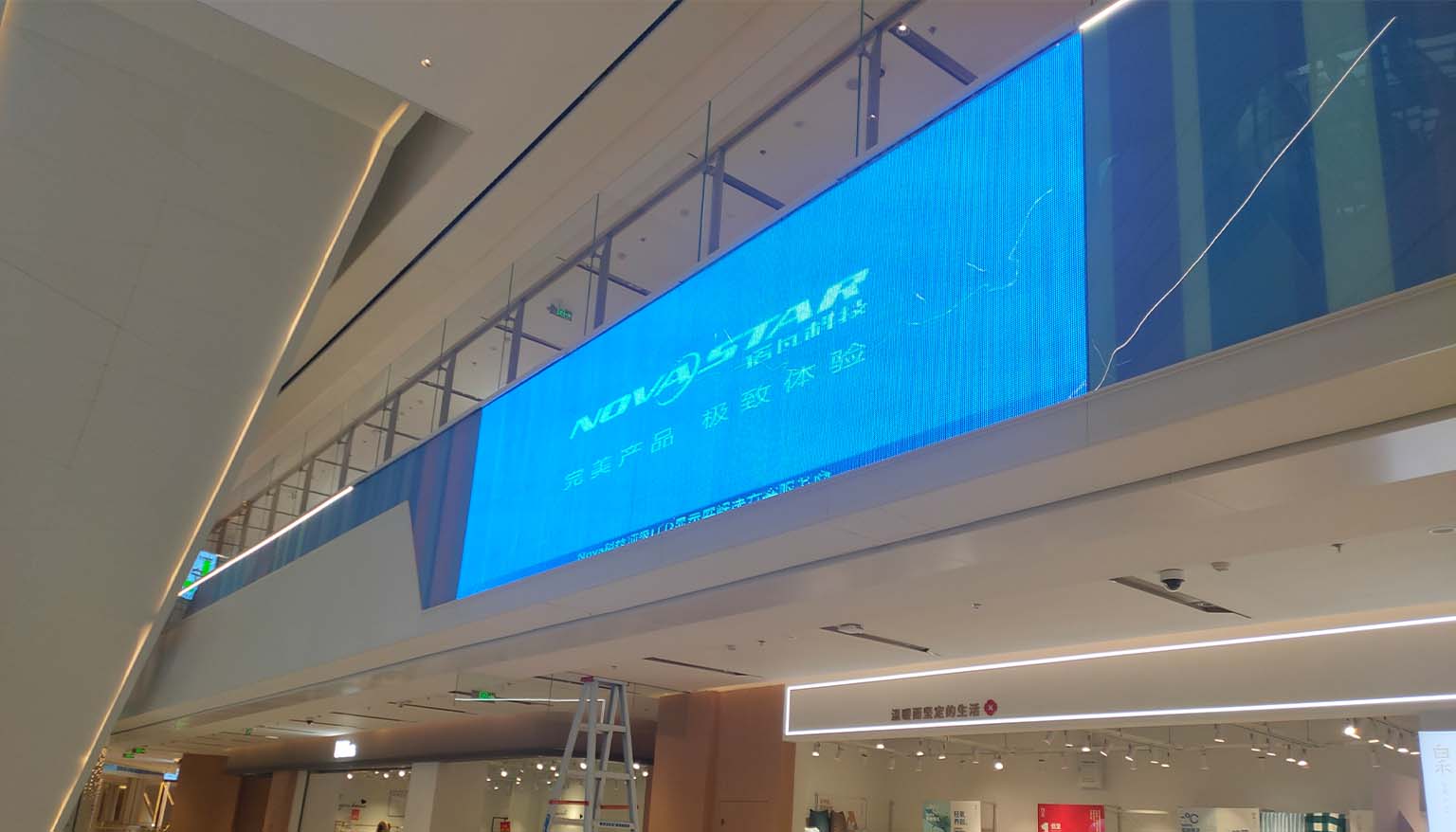

  • LED transparent laminating screen, mainly used for architectural glass curtain wall, curved glass curtain wall, with high transmittance, ultra-thin and light.
  • Bendable and arbitrary cutting, customized size according to the application scene.

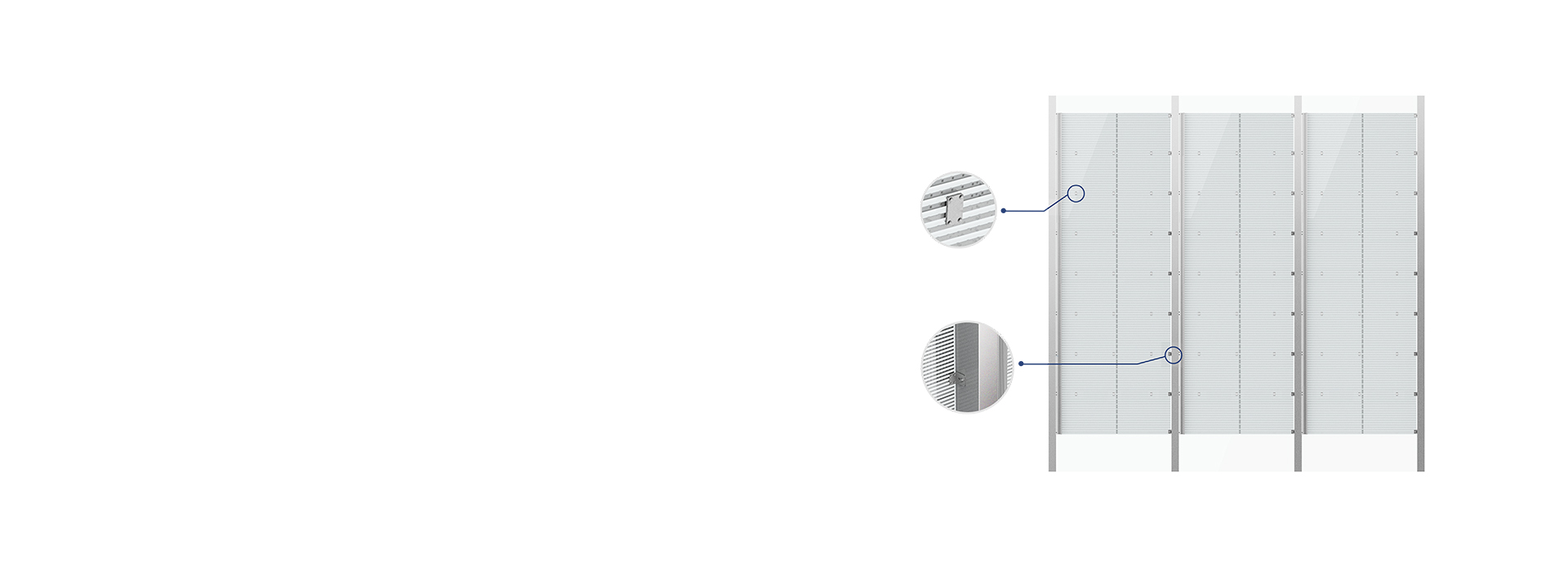

  • Easy to install, can be directly installed in the building glass curtain wall inside and outside, no structural obstruction, will not affect the original structure of the building, appearance, and indoor lighting.
  • Laminating screen has obvious technical advantages in glass curtain wall and other application scenes.

ADHESIVE LED TRANSPARENT SCREEN

Ultra Light & Thin

Ultra Light & Thin

Thickness: 2mm, 5kg/㎡

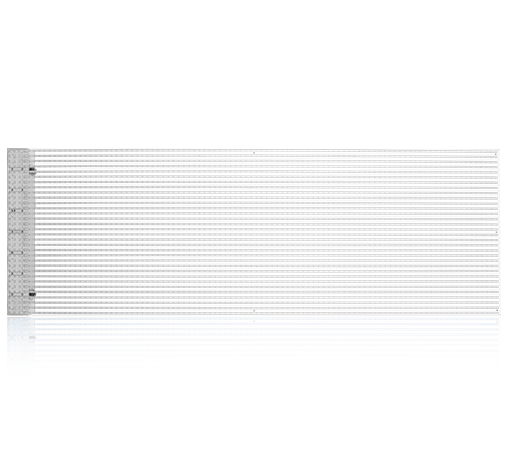

Modular Design

Modular Design

Limitless Splicing

Transparent

Transparent

Up to 90% Transparency

Customizable

Customizable

Customizable Shapes

Wider Viewing Angle

Wider Viewing Angle

viewing without dead angles and color casts, the image is always perfect and seamless.
Unlimited Splicing

Unlimited Splicing

Unlimited Splicing

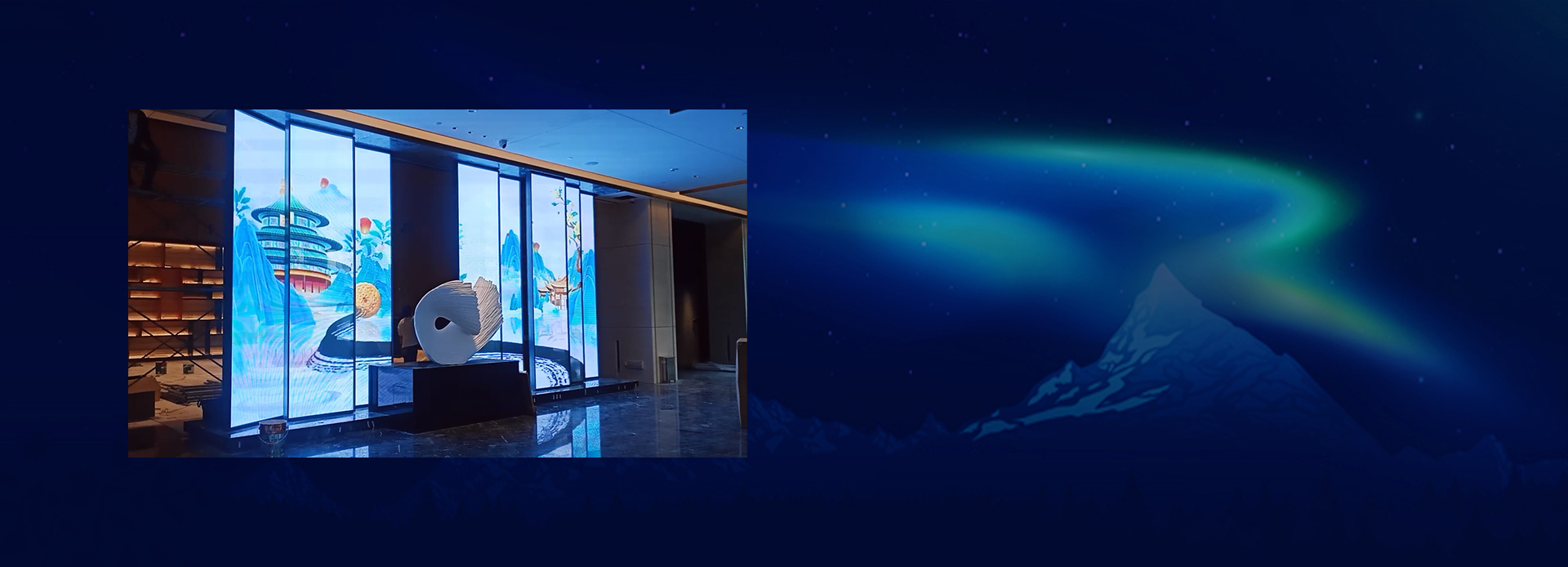

Multi-dimensional display

Multi-dimensional display

Floor-to-ceiling screens,
also floor-to-ceiling screens.
Tailor-made

Tailor-made

Squares, triangles, circles, all can be cut and mounted as desired.
Specs
Model

ZR-A

D-P4

ZR-A

D-P5H

ZR-A

D-P5

ZR-A

D-P6

ZR-A

D-P6.5

ZR-A

D-P8

ZR-AD

-P10

ZR-AD

-P20

ZR-AD

-P20*40

ZR-AD

-P30-2

ZR-AD

-P40

Pixel Pitch(mm) 4-8 5 5-10 6 6.5 8 10 20 20-40 30 40

Module Size

(mm)

960*

320

960*

320

960*

320

960*

384

962*416

960

*320

960

*320

960*320

960

*400

960*360

960

*400

Resolution

(dots)

240*

40

192*64 192*32

160

*64

148*64 120*40 96*32 48*16 48*10 32*12 24*10

Pixel Density

(px/㎡)

31250 40000 20000 27777 23668 15625 10000 2500 1250 2220 625
Brightness(cd/㎡) ≤5500 ≤5500 ≤5500 ≤5500 ≤5500 ≤5500 ≤5500 ≤2500 ≤1500 ≤1800 ≤1000
Transparency ≤60% ≤40% ≤68% ≤50% ≤53% ≤60% ≤68% ≤85% ≤92% ≤90% ≤95%
Ave. Consumption(w/㎡) ≤250 ≤250 ≤250 ≤250 ≤250 ≤250 ≤250 ≤100 ≤100 ≤100 ≤100
Max. Consumption(w/㎡) ≤700 ≤700 ≤700 ≤700 ≤700 ≤700 ≤700 ≤300 ≤300 ≤300 ≤300
Driving IC                                                                                                                              IC9866
Screen Weight(KG/㎡)                                                                                                                                   7
Led Lamp SMD1921
Gray Scale 16bit
Refresh Rate ≥3840Hz
Viewing Angle 140°±10°
Input Voltage AC110/220V±10% 50-60Hz
Output Voltage 3.8-5V
Working Temperature(℃)   -20℃-55℃
Working Humidity(RH) 20%-90%
Video Source DVI, HDMI, VGA
Control System Nova
Signal Transmission CAT: 100m
MTBF ≥6500H
Span Life 100000H
Waterproof Grade IP30
