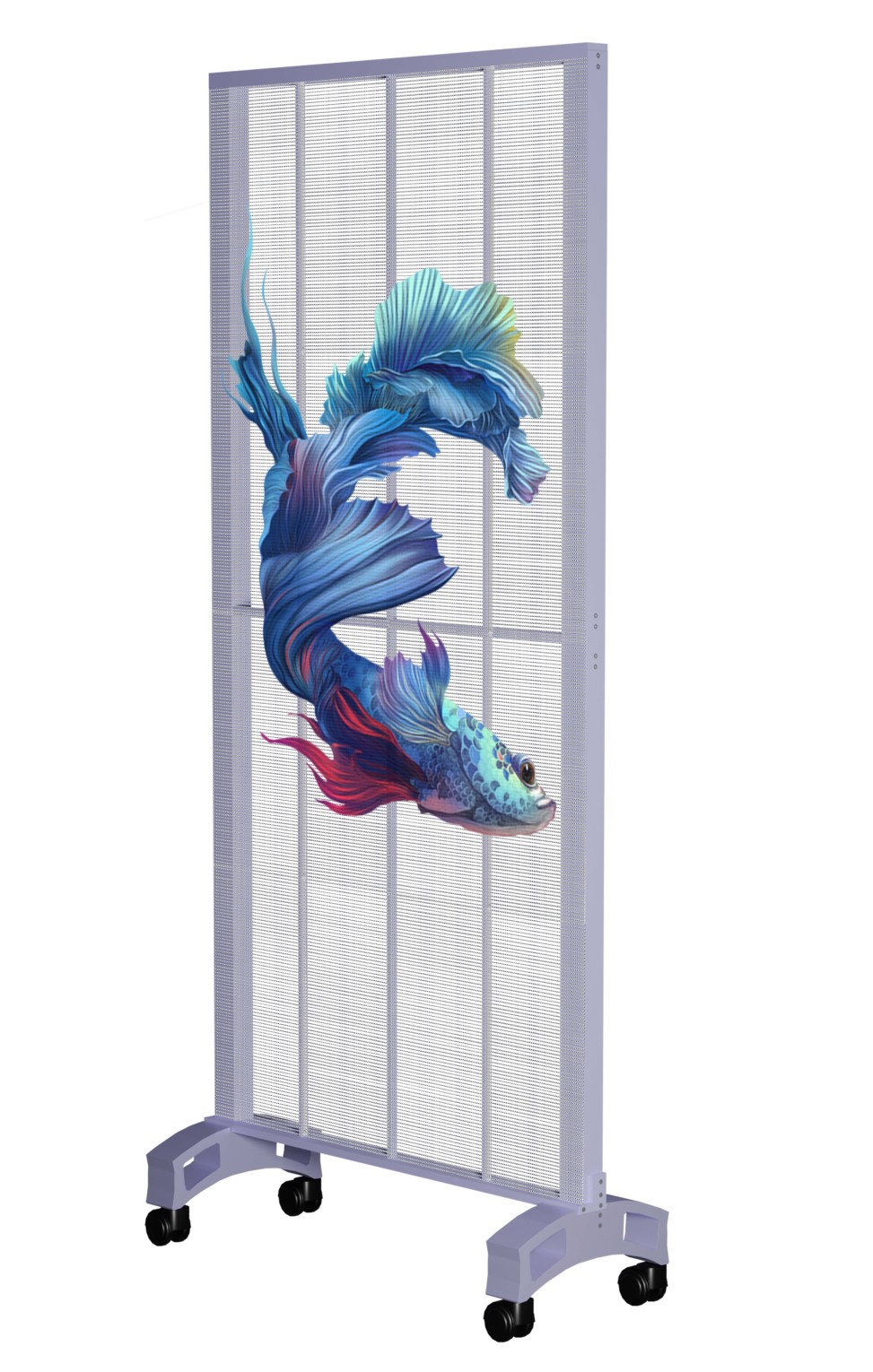

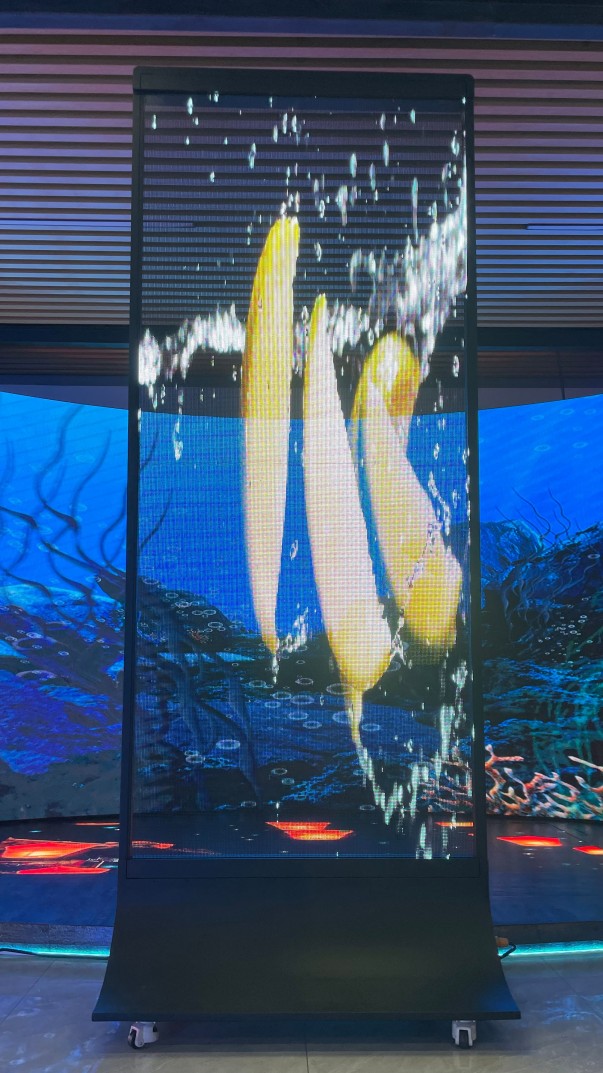

Holographic LED Transparent Screen

Transparent LED signage represents a groundbreaking innovation that blends in perfectly with shopping malls while providing a novel flow of foot traffic.These see-through LED screens are designed with lightweight modules available in various sizes and pixel pitches to meet diverse project requirements.
These screens are highly adaptable, featuring moisture-proof and dust-proof capabilities. Their robust structure ensures durability and ease of maintenance, making them an ideal choice for modern displays. Transparent LED signage not only enhances the visual appeal of shopping malls but also provides a unique and captivating display experience.

enquiries@luminatii.com Copied

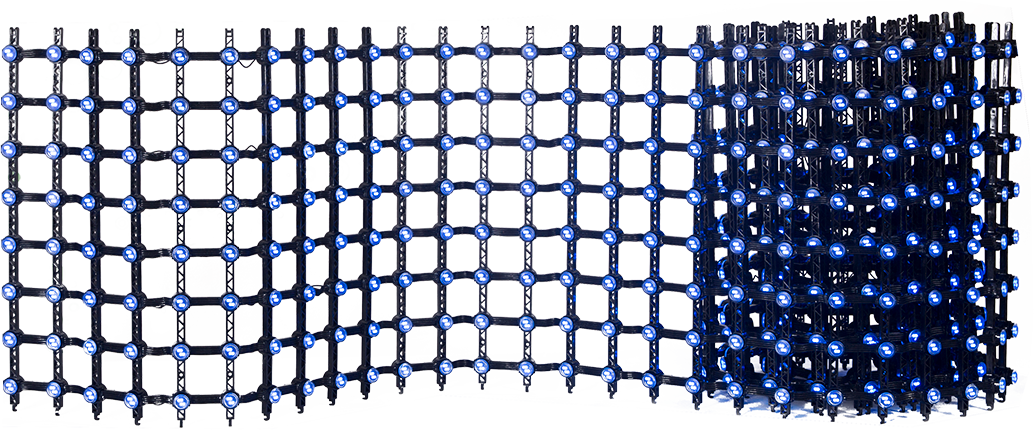

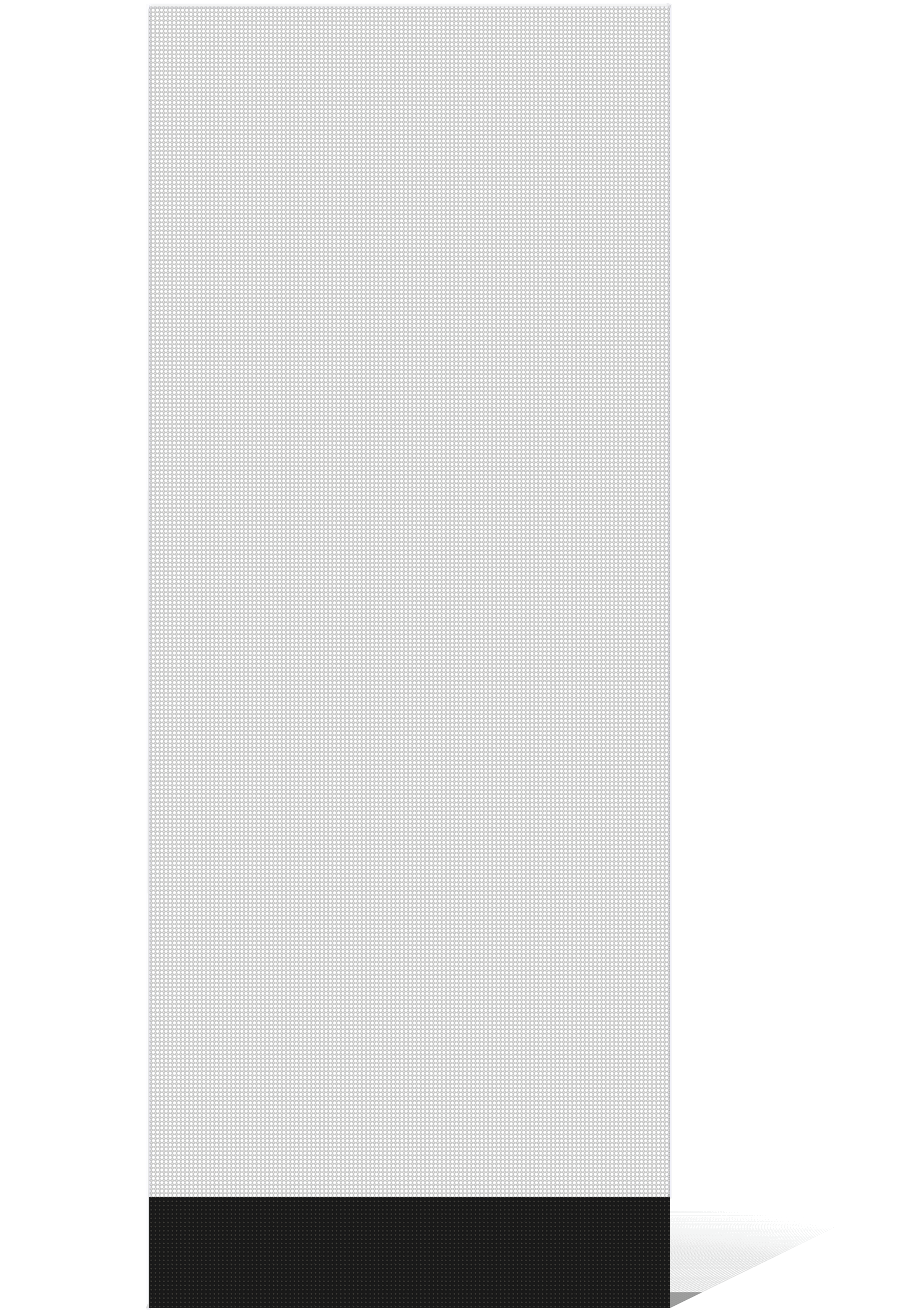

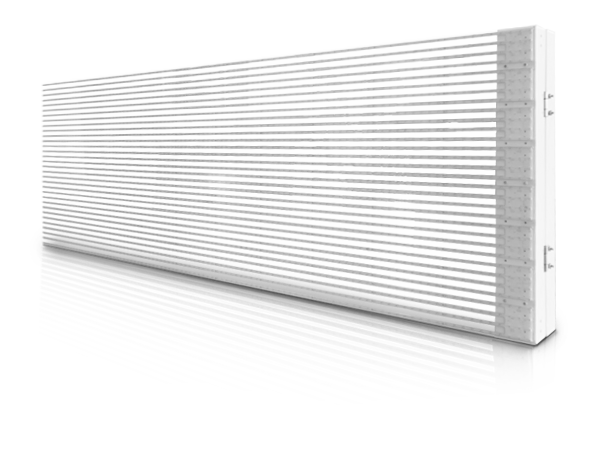

LED HOLOGRAPHIC

Lightweight & Durable

Fiberglass Material

Cool Display

Excellent Heat Dissipation

Transparent

Up to 90% Transparency

Customizable

Shapes and sizes are customizable

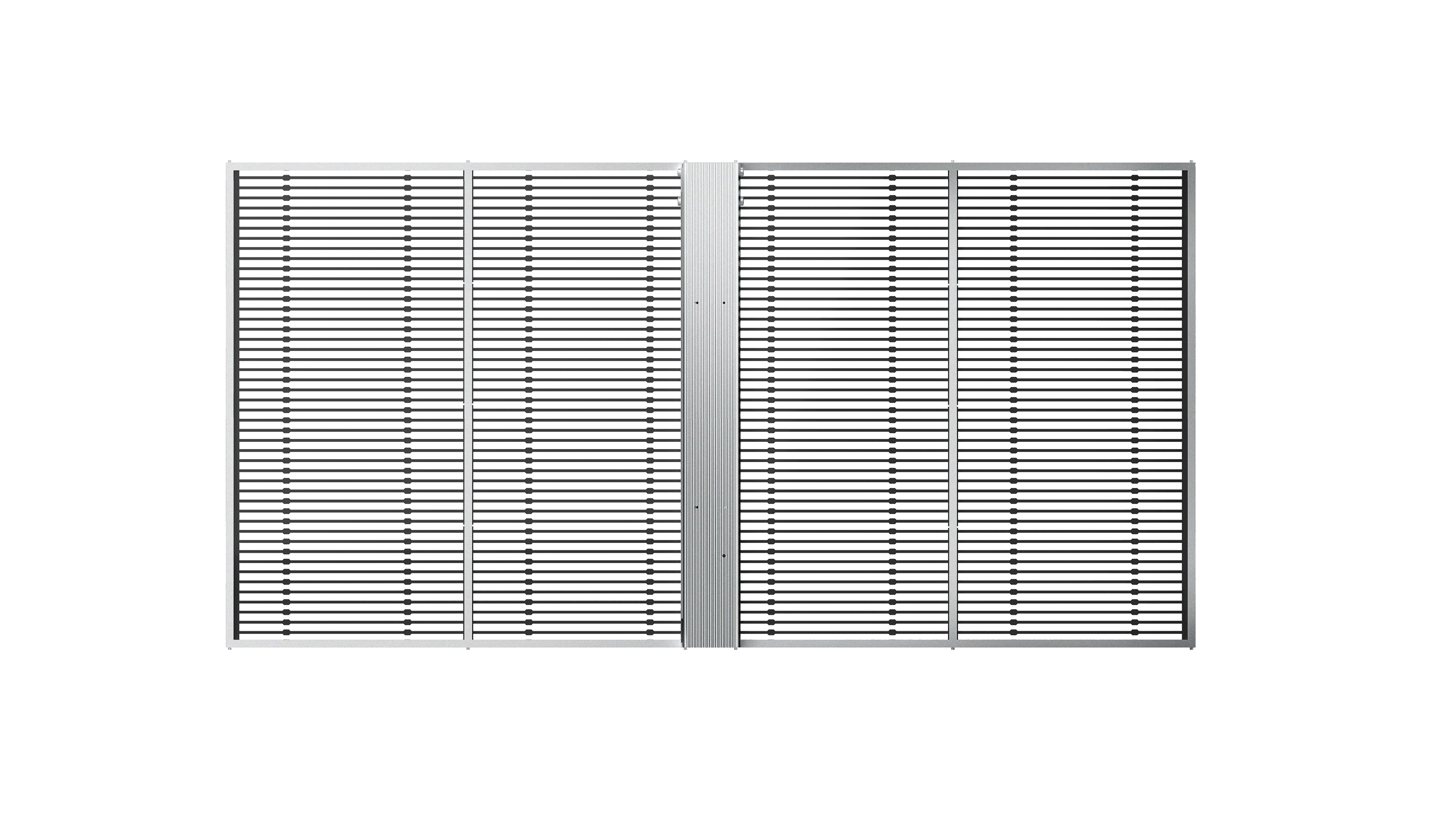

Thin & Lightweight

Fiberglass Material

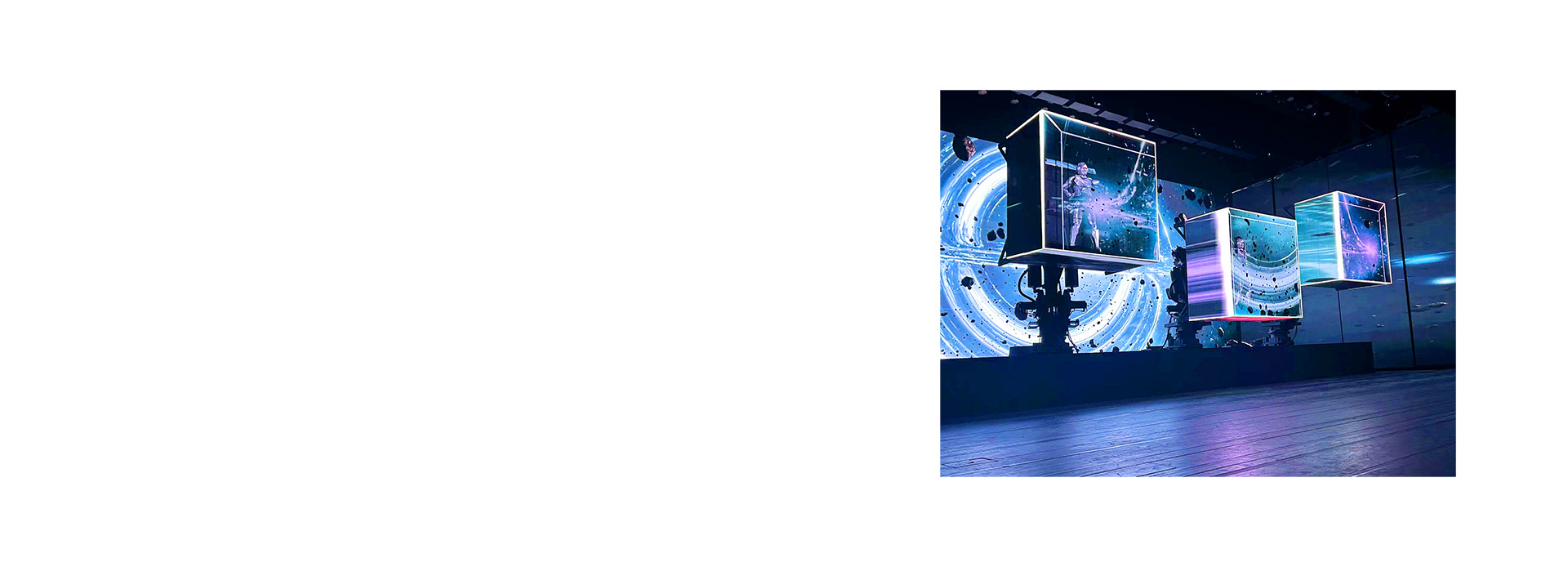

Holographic

Display a holographic image

Excellent Colouring

Rich and vibrant color presentation.

Custom Splicing

Highly customizable polymorphic spelling screen.

Cooling

Natural Cooling

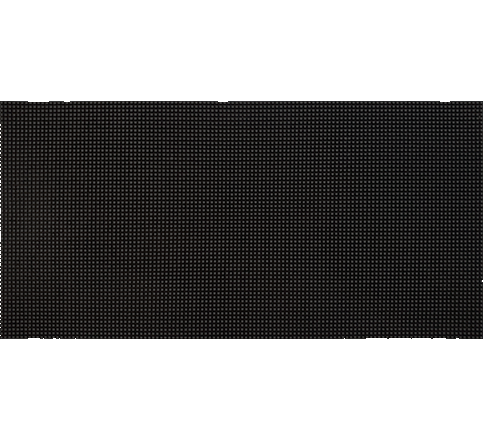

High Resolution

The high transparency also doesnt hinder the high-resolution screen performance.

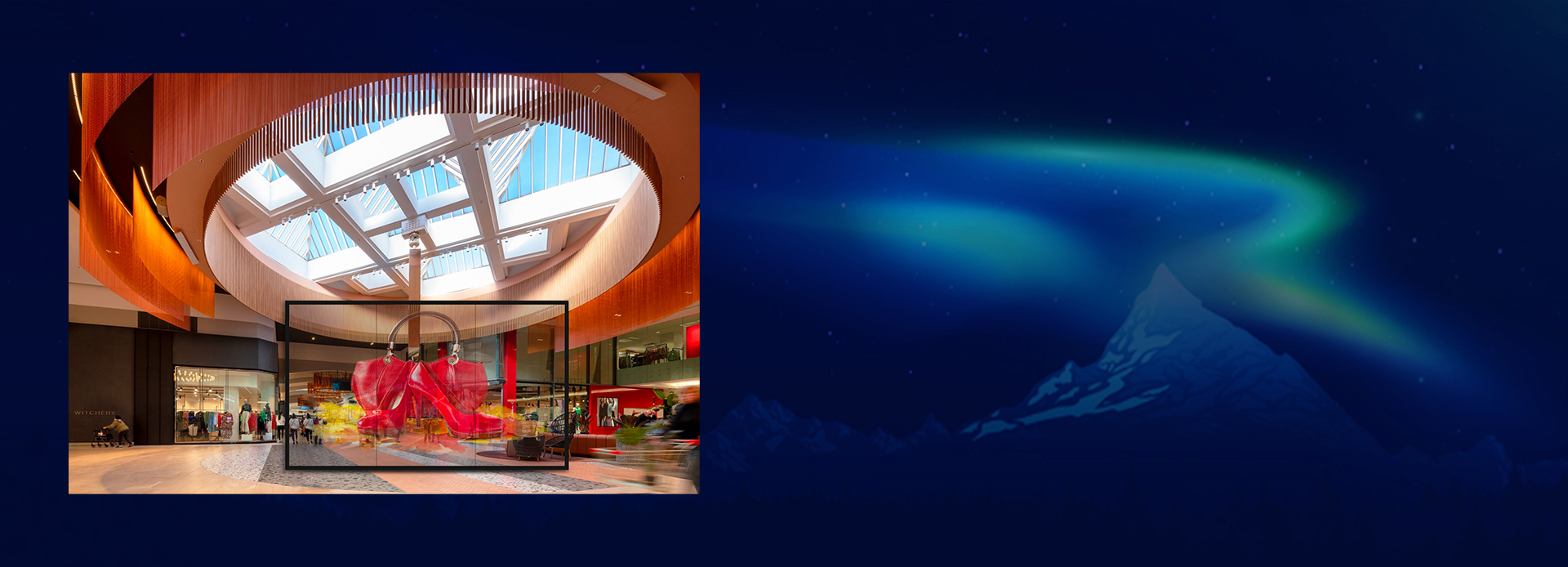

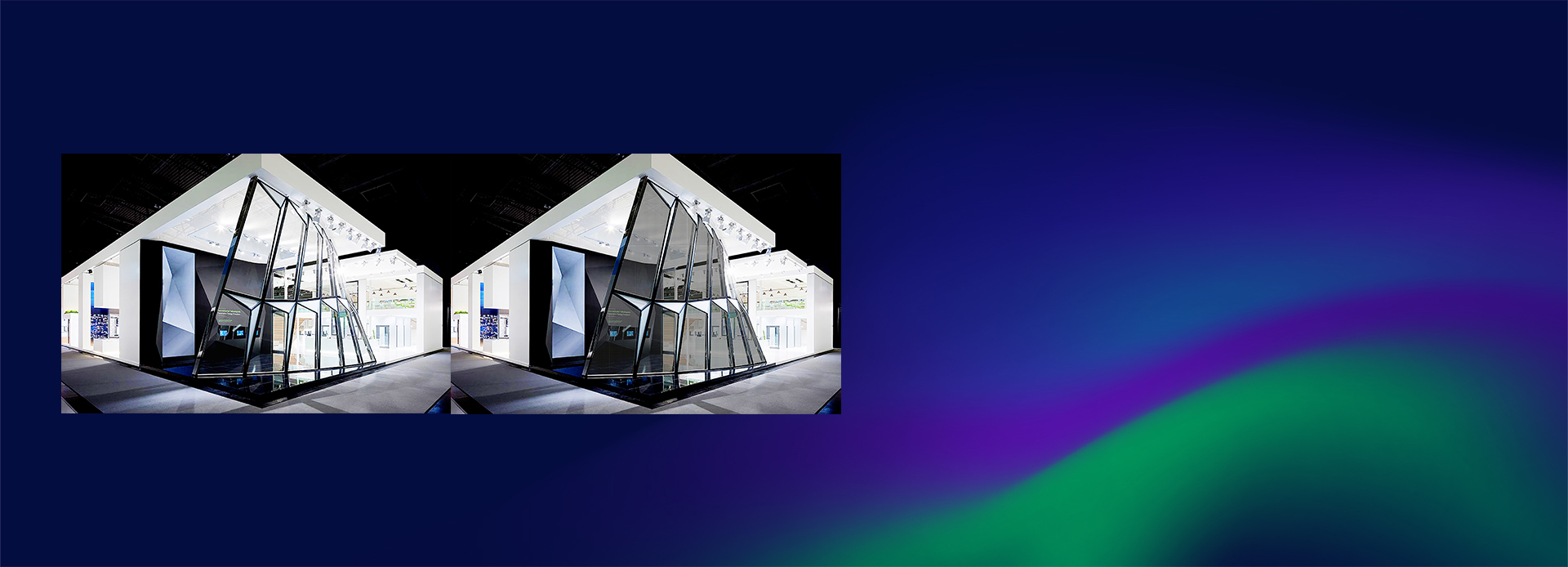

High Transparency

Up to 80%, perfectly preserving the transparency of glass curtain walls
Will not affect the indoor and outdoor lighting
Will not affect the original design when the screen stops working
When the screen stops working, it basically blends in with the building from a distance

Specs

Model	P2.5	P3.9	P6.25	P10.4
Pixel Pitch(mm)W*H	H 2.5 mm-2.5 mm W	H 3.9 mm-3.9 mm W	H 6.25 mm-6.25 mm W	H 10.4 mm-10.4 mm W
Pixel Density(px/m²)	160000	65536	25600	9216
LED type	SMD1212	SMD1717	SMD2020	SMD2020
Standard Module Size(mm)W*H	W 160 * 1200 H mm	W 250 * 1200 H mm	W 250 * 1200 H mm	W 250 * 1200 H mm
Module Resolution	64*480 dots	64*294 dots	40*192 dots	24*116 dots
Viewing Distance(m)	above 2.5 m	above 3.9 m	above 6.25 m	above 10 m
Brightness(full white)(cd/m²)	800-5000	800-5000	800-5000	800-5000
Transparency Rate	75%	80%	90%	92%
Weight(kg/m²)	5.0	4.8	4.8	4.4
Max. Power Consumption (W/m²)	1200	1000	800	600
Avg. Power Consumption (W/m²)	400	300	260	200
Refresh Rate	3840 HZ
Viewing Angle	H:160° V:160°
IP Rating	IP30
Signal Input	HDMI,DVI,VGA,RF,S-Video,RGB,RGBH,YUV,YC&Conposition,etc
Working Environment	-10℃～+60℃ 10%～90%RH
Life Span Time	≥100000hours
Application	Glass Window and Guardrail, Shopping Mall, Decoration, Creative Show

Download

Related Cases

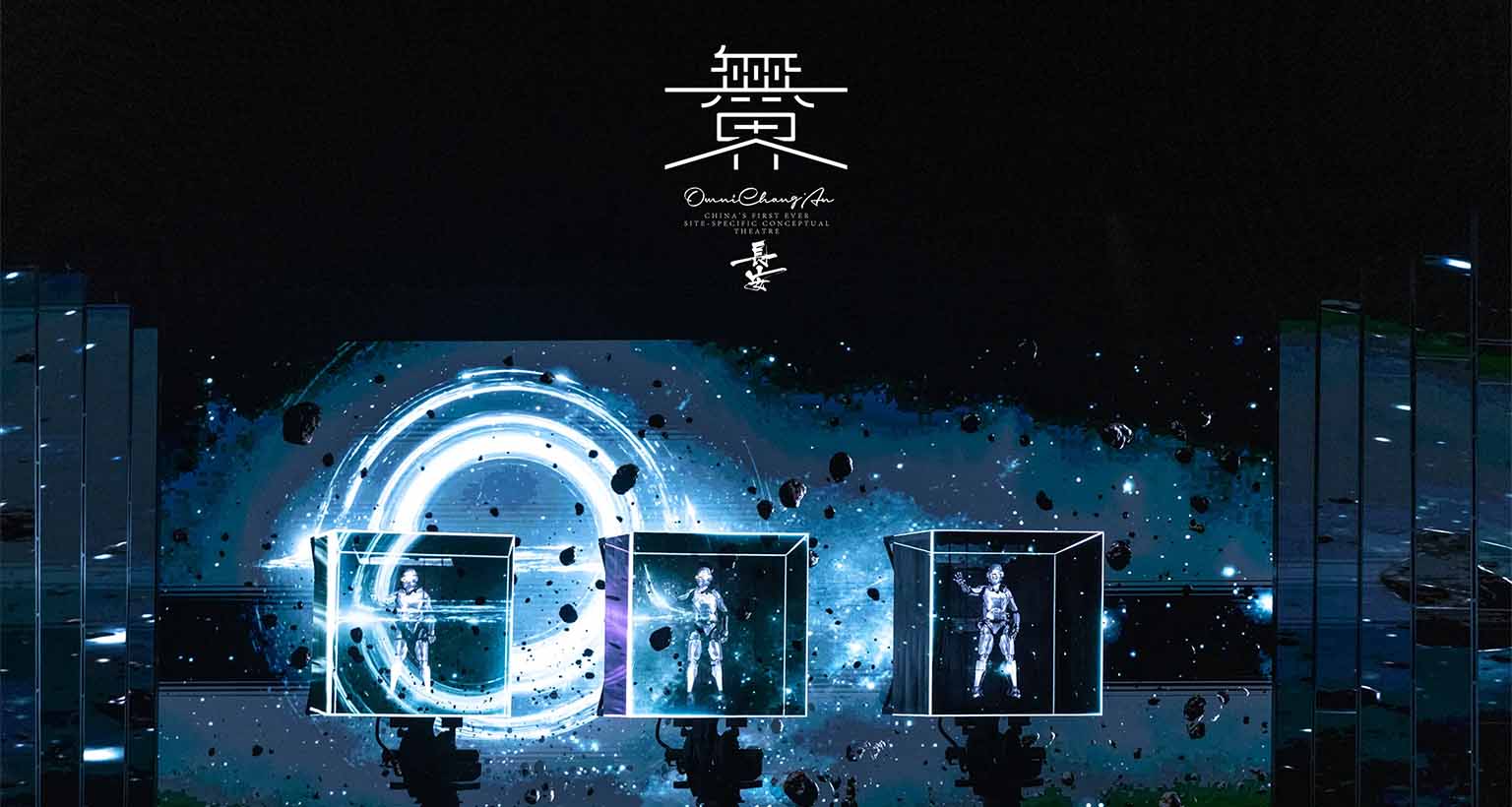

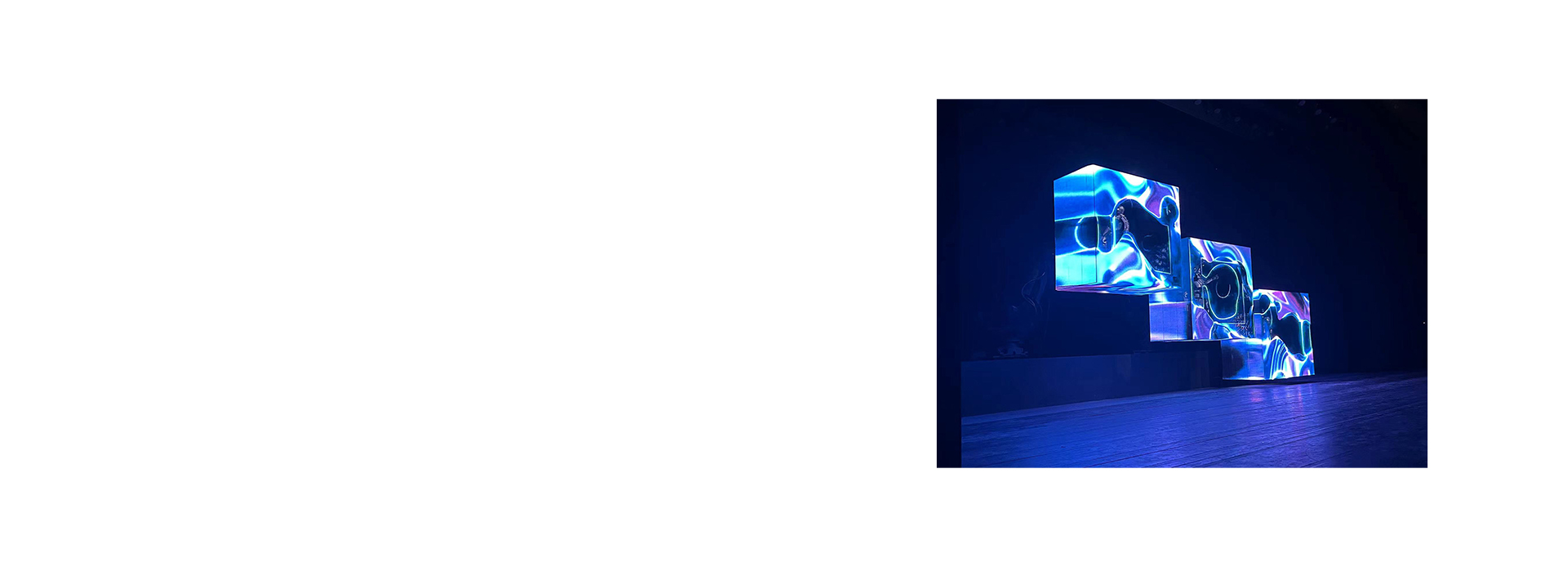

Omni Chang'an
Location: Xi'an
Products:Holographic LED Screen
Application: Artistic Performance
